Flare Double Corner – Bay Linear Fireplace

Flare Frameless Double Corner Modern Fireplace Is Available In 8 Different Sizes

Protective Screens OR Double Glass

For all Corner Fireplaces

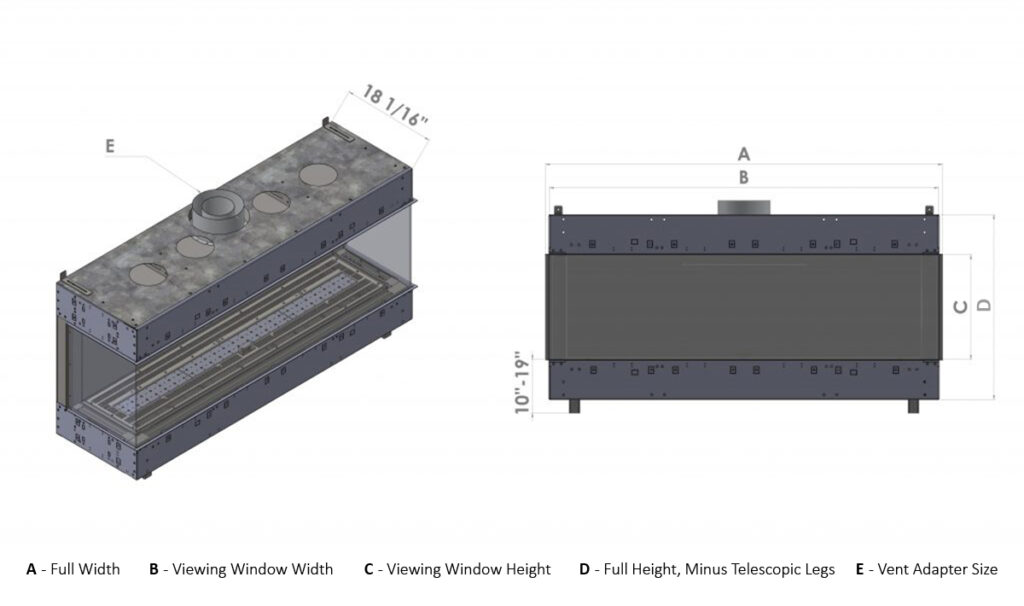

  • Model name reflects approximate fireplace size (A)
  • Model-H means high glass, 24″ (C)

All units are certified and approved by CSA to be installed in North America,

including in the state of California Massachusetts.

IMPERIAL

MODEL NAMEABCHE
Flare-DC-100100 8/16"99 1/4"16"28"5"x8"
Flare-DC-8083 9/16"82 9/16"16"28"5"x8"
Flare-DC-7071"69 11/16"16"28"5"x8"
Flare-DC-6061 2/16"59 7/8"16"28"5"x8"
Flare-DC-5051 5/16"50"16"28"5"x8"
Flare-DC-4544 10/16"43 5/16"16"28"4"x6"
Flare-DC-3031 10/16"30 5/1624"35 14/16"4"x6"
Flare-DC-2523 12/16"22 7/16"24"35 14/16"4"x6"
Flare-DC-100-H100 8/16"99 1/4"24"35 14/16"5"x8"
Flare-DC-80-H83 9/16"82 9/16"24"35 14/16"5"x8"
Flare-DC-70-H71"69 11/16"24"35 14/16"5"x8"
Flare-DC-60-H61 2/16"59 7/8"24"35 14/16"5"x8"
Flare-DC-50-H51 5/16"50"24"35 14/16"5"x8"
Flare-DC-45-H44 10/16"43 5/16"24"35 14/16"4"x6"
  • Model name – Reflects approximate unit size
  • B – Reflects screen or glass size

NG

Model NameBurner Type
BTU/H MaxInput Max[KW]BTU/H MinEfficiency
Flare-100H65813
19.33250080.5
Flare-80G57629
16.93100080.2
Flare-70F55583
16.32800079.9
Flare-60E52173
15.32800079.8
Flare-50D46035
13.52275079.8
Flare-45C42966
12.62200079.7
Flare-30B34782
10.21850079.4
Flare-25A30690
91750079.4
Flare-100-HH65813
19.33250080.5
Flare-80-HG57629
16.93100080.2
Flare-70-HF55583
16.32800079.9
Flare-60-HE52173
15.32800079.8
Flare-50-HD46035
13.52275079.8
Flare-45-HC42966
12.62200079.7

LPG

Model NameBurner TypeBTU/h maxBTU max [KW]BTU minEfficiency
Flare-100H51150152550076
Flare-80G4637613.62075075
Flare-70F4296612.62000079
Flare-60E42966122000080
Flare-50D4092010.31850082
Flare-45C2625777001775082
Flare-30B262577700160081
Flare-25A2489373001250077
Flare-100-HH51150152550076
Flare-80-HG4637613.62075075
Flare-70-HF4296612.62000079
Flare-60-HE42966122000080
Flare-50-HD4092010.31850082
Flare-45-HC2625777001775082

Media Options

Features

Flare Linear 3D fireplace burner

3D Stainless Steel Burners

Longer, 3D stainless steel, burners (V.S a pipe burner) with deeper taller flame that extends closer to the sides of the fireplace.

glass_board

High Glass Opening

Taller, 16″ or 24″, ceramic glass opening, Improved viewing angle of the flames.

Flare Optional Power Supply

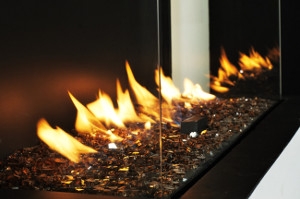

Corner Fireplace

Corner and Double Corner frameless slim contemporary fireplace design with glass to glass connection.

B6R_SYMAX_04.2014_SYMAX

Touch Remote

Six button stylish remote with timer, sleep mode, flame height adjustment, programming and temperature control.

Flare Optional Multi Color LED

Multi Color LED Lighting Option

Optional multi color interior RGB LED lighting.Allows perfect flames view across a bed of crushed glass, illuminated by LED under lighting.

Flare Double Glass

Double Glass

Optional seamless cooled Double Glass for safety without the need of safety screens.

walls

Wallswitch

Optional modern touch wall switch

Frameless Fireplace Battery Operated

Battery Backup & Electronic Ignition

Heats without power. Designed to operate during a power outage using battery backup.Fuel  saving electronic ignition with battery back-up.

Reflective Back Radiant Ceramic Panel

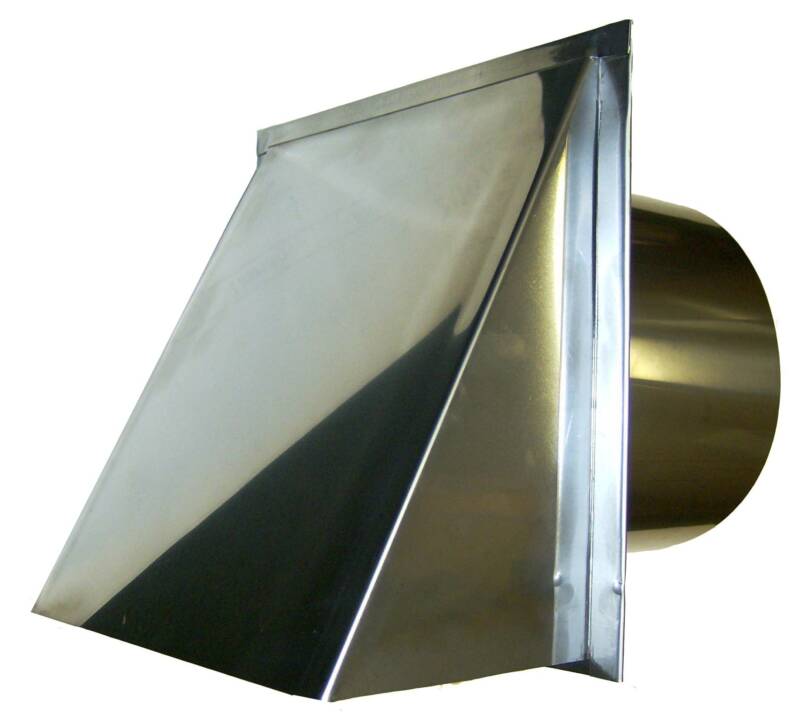

Optional Power Vent

Optional power vent system for all Flare Fireplaces models – 3×5 diameter vent system.

Analog timer frameless fireplace

Optional Timer

Optional timer to turn On/Off the fireplace for commercial and residential applications . Digital or Analog option avalible.

Reflective Back Radiant Ceramic Panel

Power Supply

Optional 110V power adapter for day to day use.
