Project Description
Flare Modern Room Definer Fireplace is available in 7 different sizes
Protective Screens OR Double Glass

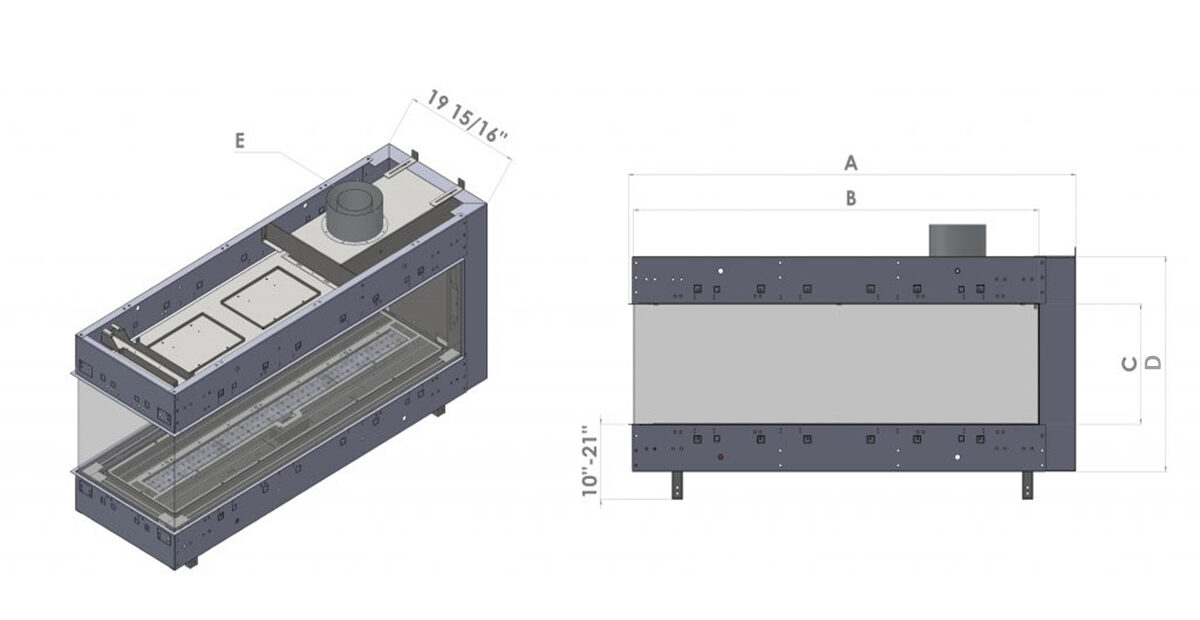

Model name reflects approximate fireplace size (A)
Model-H means high glass, 24″ (C)
All units are certified and approved by CSA to be installed in North America,
including in the state of California & Massachusetts.
IMPERIAL
| MODEL NAME | A | B | C | H | E |
|---|---|---|---|---|---|
| Flare-RD-100 | 102" 12/16 | 96 12/16" | 16" | 28" 12/16 | 5x8 |
| Flare-RD-80 | 86" | 80" | 16" | 28" 12/16 | 5x8 |
| Flare-RD-70 | 73" 4/16 | 65" 12/16 | 16" | 28" 12/16 | 5x8 |
| Flare-RD-60 | 63 " 6/16 | 55" 14/16 | 16" | 28" 12/16 | 5x8 |
| Flare-RD-50 | 53" 9/16 | 46" 1/16 | 16" | 28" 12/16 | 5x8 |
| Flare-RD-45 | 46" 15/16 | 40 15/16" | 16" | 28" 12/16 | 5x8 |
| Flare-RD-100-H | 102" 12/16 | 96 12/16" | 24" | 36 10/16" | 5x8 |
| Flare-RD-80-H | 86" | 80" | 24" | 36 10/16" | 5x8 |
| Flare-RD-70-H | 73" 4/16 | 65" 12/16 | 24" | 36 10/16" | 5x8 |
| Flare-RD-60-H | 63 " 6/16 | 55" 14/16 | 24" | 36 10/16" | 5x8 |
| Flare-RD-50-H | 53" 9/16 | 46" 1/16 | 24" | 36 5/16" | 5x8 |
| Flare-RD-45-H | 46" 15/16 | 40 15/16" | 24" | 36 10/16" | 5x8 |
| Flare-RD-100-EH | 102" 12/16 | 96 12/16" | 30" | 42 7/8" | 5x8 |
| Flare-RD-80-EH | 86" | 80" | 30" | 42 7/8" | 5x8 |
| Flare-RD-70-EH | 73" 4/16 | 65" 12/16 | 30" | 42 7/8" | 5x8 |
| Flare-RD-60-EH | 63 " 6/16 | 55" 14/16 | 30" | 42 7/8" | 5x8 |
| Flare-RD-50-EH | 53" 9/16 | 46" 1/16 | 30" | 42 7/8" | 5x8 |
| Flare-RD-45-EH | 46" 15/16 | 40 15/16" | 30" | 42 7/8" | 5x8 |
NG
| Model Name | Burner Type | BTU/H Max | Input Max[KW] | BTU/H Min | Efficiency |
|---|---|---|---|---|---|
| Flare-100 | H | 65813 | 19.3 | 32500 | 80.4% |
| Flare-80 | G | 57629 | 16.9 | 31000 | 80.1% |
| Flare-70 | F | 55583 | 16.3 | 28000 | 79.8% |
| Flare-60 | E | 52173 | 15.3 | 28000 | 79.5% |
| Flare-50 | D | 46035 | 13.5 | 22750 | 79.5% |
| Flare-45 | C | 42966 | 12.6 | 22000 | 79.4% |
| Flare-100-H/EH | H | 65813 | 19.3 | 32500 | 80.4% |
| Flare-80-H/EH | G | 57629 | 16.9 | 31000 | 80.1% |
| Flare-70-H/EH | F | 55583 | 16.3 | 28000 | 79.8% |
| Flare-60-H/EH | E | 52173 | 15.3 | 28000 | 79.5% |
| Flare-50-H/EH | D | 46035 | 13.5 | 22750 | 79.5% |
| Flare-45-H/EH | C | 42966 | 12.6 | 22000 | 79.4% |
LPG
| Model Name | Burner Type | BTU/h max | BTU max [KW] | BTU min | Efficiency |
|---|---|---|---|---|---|
| Flare-100 | H | 51150 | 15 | 25500 | 80.5% |
| Flare-80 | G | 46376 | 13.6 | 20750 | 80% |
| Flare-70 | F | 42966 | 12.6 | 20000 | 79.7% |
| Flare-60 | E | 42966 | 12 | 20000 | 80.0% |
| Flare-50 | D | 40920 | 10.3 | 18500 | 79.6% |
| Flare-45 | C | 26257 | 7700 | 17750 | 79.5% |
| Flare-100-H/EH | H | 51150 | 15 | 25500 | 80.5% |
| Flare-80-H/EH | G | 46376 | 13.6 | 20750 | 80% |
| Flare-70-H/EH | F | 42966 | 12.6 | 20000 | 79.7% |
| Flare-60-H/EH | E | 42966 | 12 | 20000 | 80.0% |
| Flare-50-H/EH | D | 40920 | 10.3 | 18500 | 79.6% |
| Flare-45-H/EH | C | 26257 | 7700 | 17750 | 79.5% |
Flare Manuals & Brochures:
Venting:
Flare Dimensions & Framing:
Accessories Charts Files:
Flare Fireplaces CAD Files:
Accessories CAD Files:
Media Options
Features
The linear gas fireplace is designed to apper longer over the wall projecting rectangular opening. The name “linear fireplace,” is used for the fireplace, because it can be specified by linear foot. For example, Flare 3ft, Flare 4ft or Flare 8ft. When specifying and referring to a linear fireplace, it mostly refers to a rectangular shaped fireplace.
Used in conjunction with the Flare remote or wall switch, the Myfire© app makes it possible for users to control multiple fireplaces at the house or business with a hand-held Apple or Android device with colorful, intuitive graphics.
The optional Summer Kit (SK) extracts heat from the chase, directing it outside rather than into your home. The inline system of fans allows the fireplace to operate without a significant increase in room temperature and operating the kit is as simple as starting your fireplace.
Modern homes are hard to control. As technology advances, the number of controlled devices increases. The Flare linear modern fireplace presents a way to connect the system to a home automation process in order to control it as part of the house, and not only with a dedicated remote.
3D Stainless Steel Burners
Longer, 3D stainless steel, burners (V.S a pipe burner) with deeper taller flame that extends closer to the sides of the fireplace.
High Glass Opening
Taller, 16″ or 24″, ceramic glass opening, Improved viewing angle of the flames.
Corner Fireplace
Corner and Double Corner frameless slim contemporary fireplace design with glass to glass connection.
Touch Remote
Six button stylish remote with timer, sleep mode, flame height adjustment, programming and temperature control.
Multi Color LED Lighting Option
Optional multi color interior RGB LED lighting.Allows perfect flames view across a bed of crushed glass, illuminated by LED under lighting.
Double Glass
Optional seamless cooled Double Glass for safety without the need of safety screens.
Wallswitch
Optional modern touch wall switch
Optional Power Vent
Optional power vent system for all Flare Fireplaces models – 3×5 vent system.
Power Supply
Optional 110V power adapter for day to day use.
Optional Transition Trim
Optional slim metal transition trim to all better connection and cover between the finishing material and the fireplace
Battery Backup & Electronic Ignition
Heats without power. Designed to operate during a power outage using battery backup. Fuel saving electronic ignition with battery back-up.
