A keep it simple, heat release and air intake solution.

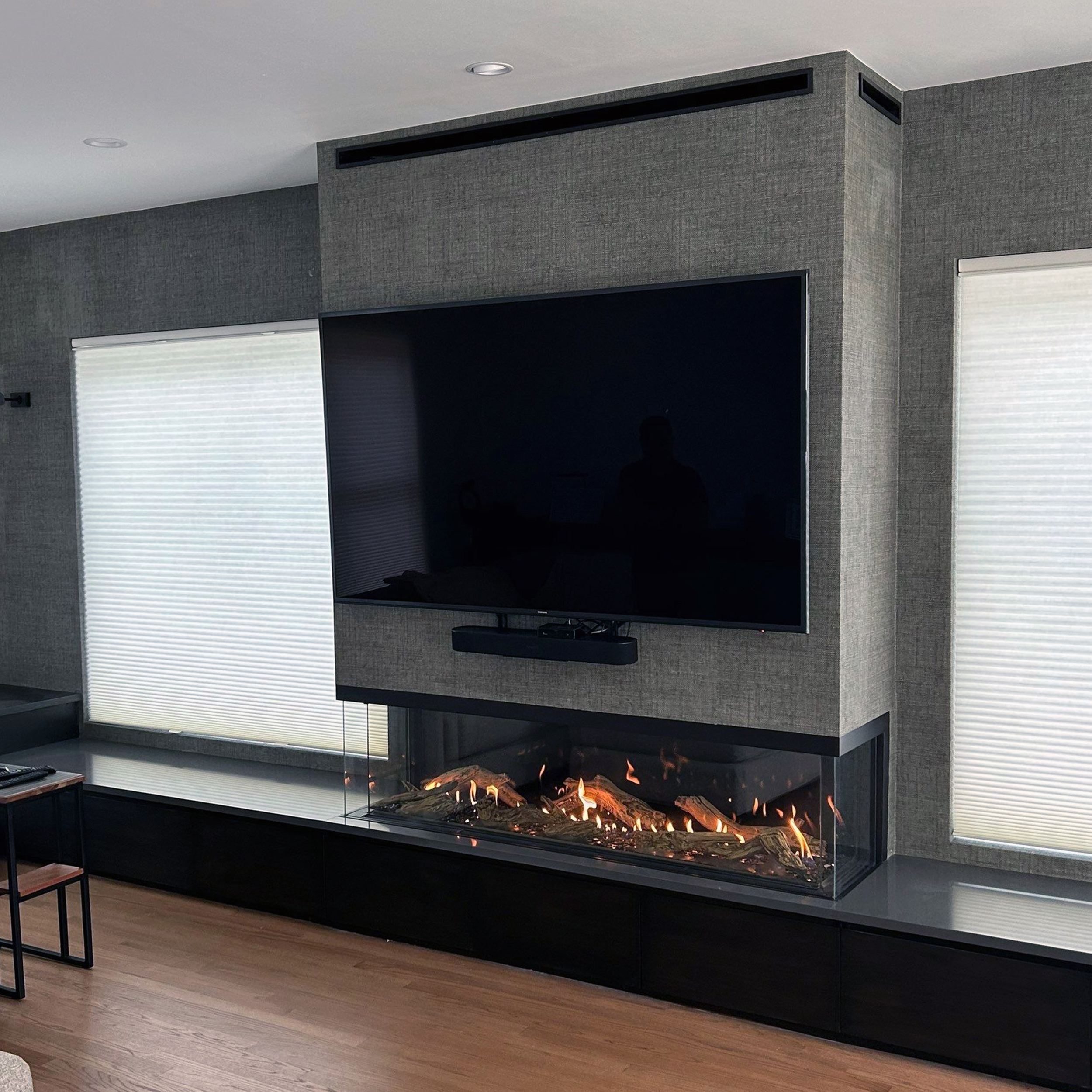

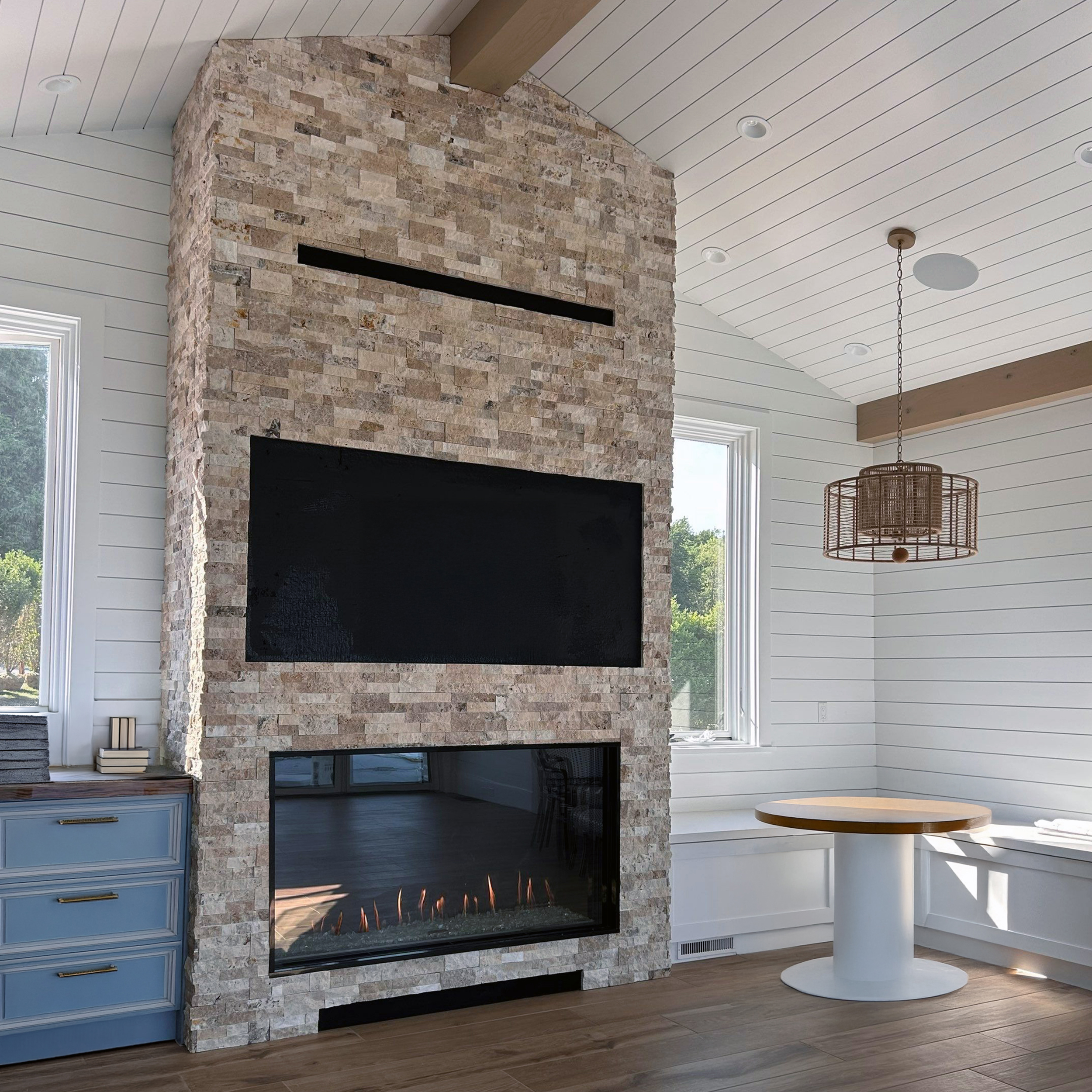

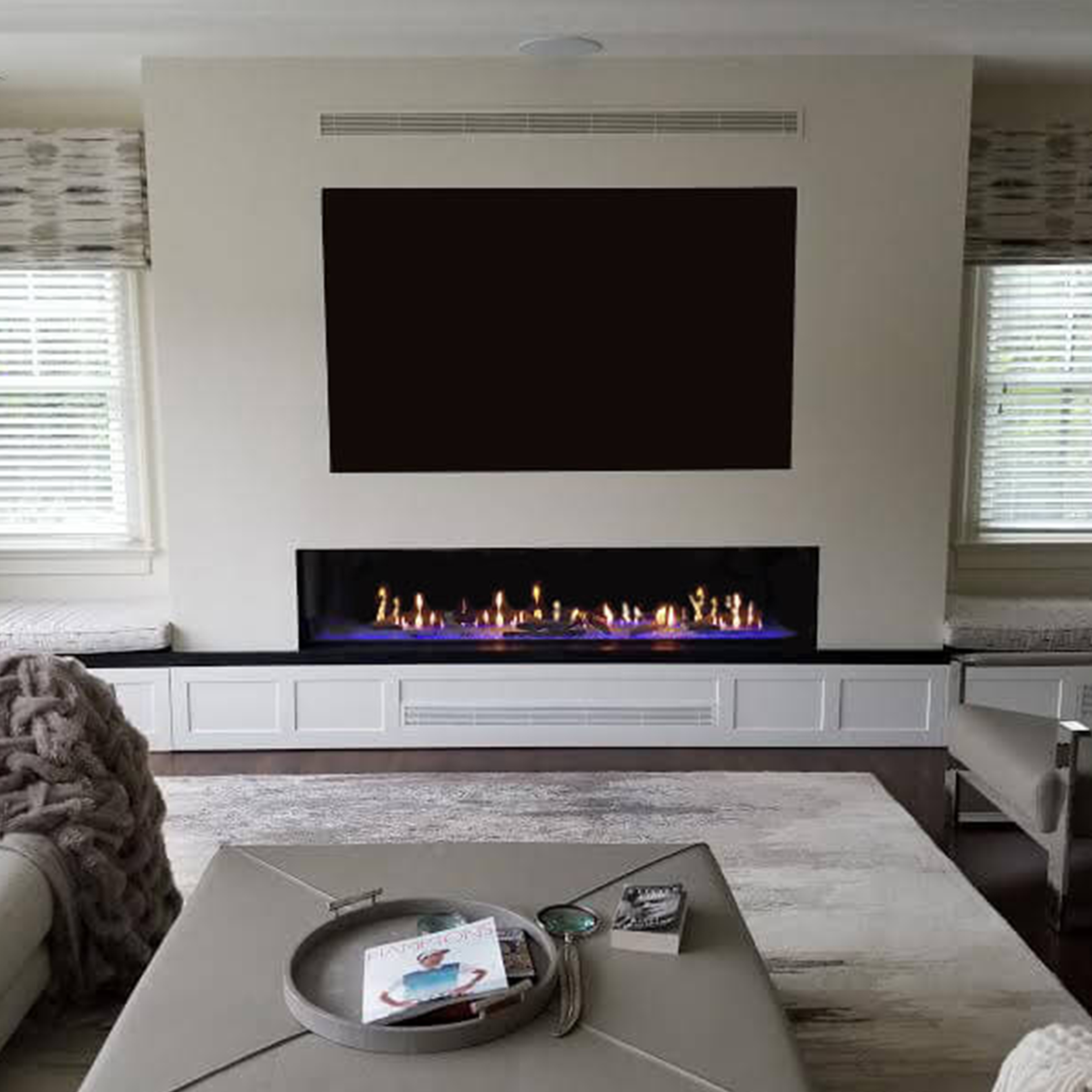

Free Flow heat release and air intake louvers are a straightforward heat-management approach: room air enters at the screen (or, with double glass, through a discrete air intake opening below the fireplace) to cool the safety barrier. The warmed air rises then exits back into the room through a top heat-release vent. Because every installation is different, intake and release openings are typically designed and finished to suit the wall. However, to simplify installs, Flare offers a standardized, paintable white louver you can purchase and install to meet the required intake/release specifications.
Heat Release
Air Intake
Heat Release
Air Intake
Free Flow Louvers
Free Flow Mounts
Full Assembly

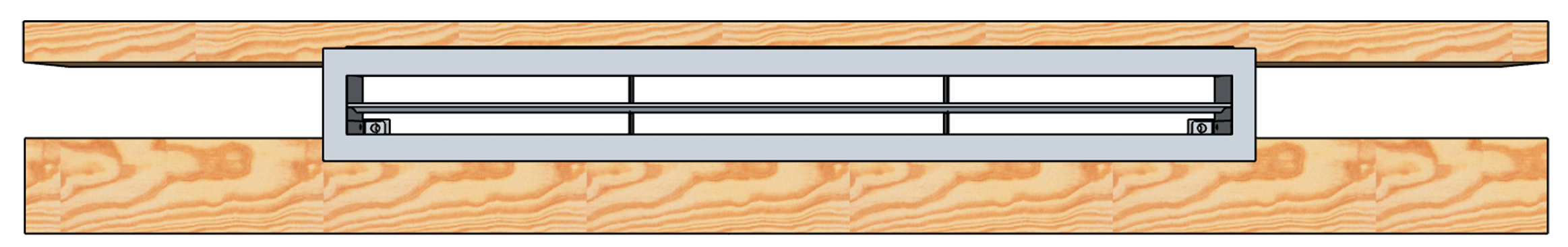

Louver Framing
Manuals & More
| Flare's Heat Release Louvers | |||
|---|---|---|---|
| Flare Model | Part Name | Dimensions | Opening Size [SQ"] |
| Flare 30 | LUV-100 | 46 3/64" x 2 5/32" | 100 SQ" |
| Flare 45 | LUV-100 | 46 3/64" x 2 5/32" | 100 SQ" |
| Flare 50 | LUV-100 | 46 3/64" x 2 5/32" | 100 SQ" |
| Flare 60 | LUV-140 | 64 1/2" x 2 5/32" | 140 SQ" |
| Flare 70 | LUV-140 | 64 1/2" x 2 5/32" | 140 SQ" |
| Flare 80 | LUV-200 | 92 5/32" x 2 5/32" | 200 SQ" |
| Flare 100 | LUV-200 | 92 5/32" x 2 5/32" | 200 SQ" |
| Free Flow - Air Intake | |||
|---|---|---|---|
| Model Size | Part Name | Description | SKU |
| Flare 30 | LUV-50 | 50 SQ" Open Air Flow White Louver | LUV50 |
| Flare 45 | LUV-50 | 50 SQ" Open Air Flow White Louver | LUV50 |
| Flare 50 | LUV-50 | 50 SQ" Open Air Flow White Louver | LUV50 |
| Flare 60 | LUV-70 | 70 SQ" Open Air Flow White Louver | LUV70 |
| Flare 70 | LUV-70 | 70 SQ" Open Air Flow White Louver | LUV70 |
| Flare 80 | LUV-100 | 100 SQ" Open Air Flow White Louver | LUV100 |
| Flare 100 | LUV-100 | 100 SQ" Open Air Flow White Louver | LUV100 |
