Flare Large– Right Corner – Modern Linear Fireplace
Large Right Corner – Modern Linear Fireplace
Flare’s Right Corner Large Fireplace collection offers lengths from 120″ to 400″ with glass height options of 16″ or 24″. Each fireplace integrates seamlessly with our modern features, provides a straightforward installation process, and includes a built-in Double Glass safety barrier. Whether for commercial or residential spaces, these large fireplaces bring both elegance and practicality to any project
IMPERIAL

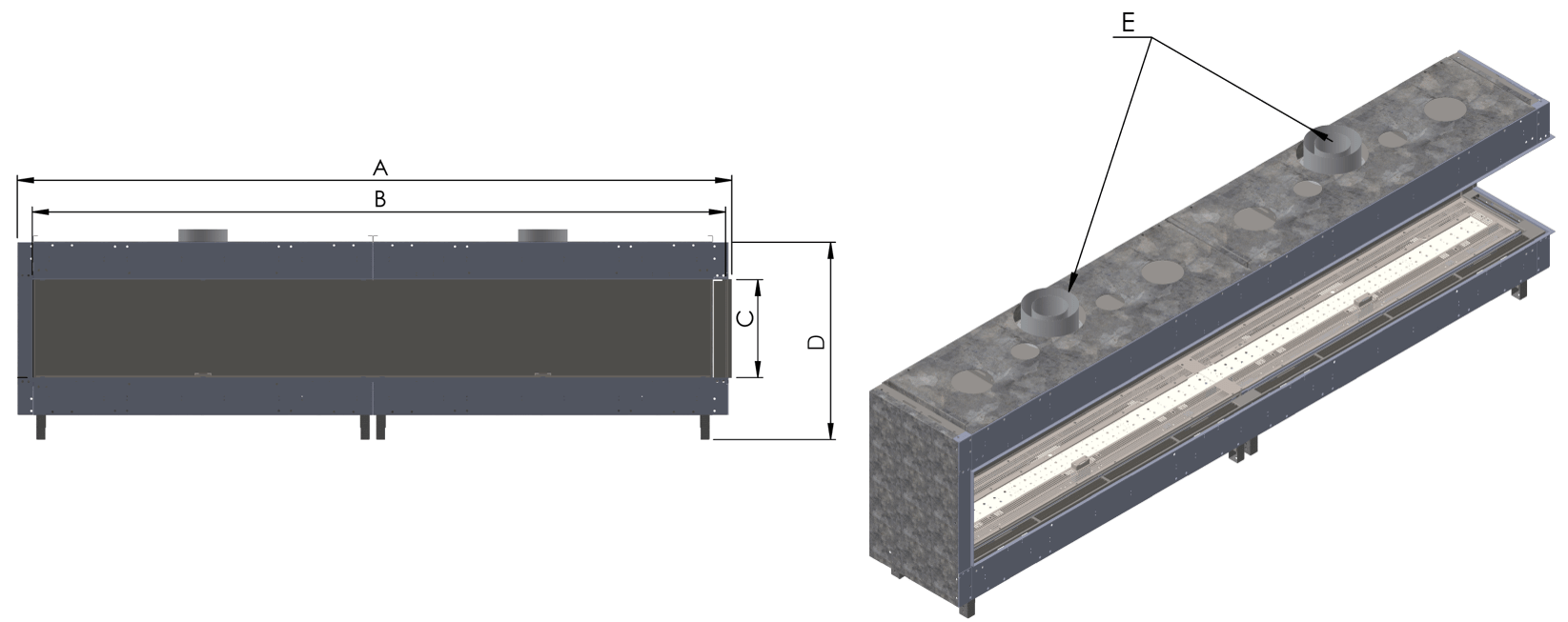

| MODEL NAME | A | B | C | D | E |
|---|---|---|---|---|---|
| Flare-RC-120 | 115 1/16" | 112 9/16" | 16" | 31 15/16" | (2) 5x8" |
| Flare-RC-140 | 135 4/16" | 132 4/16" | 16" | 31 15/16" | (2) 5x8" |
| Flare-RC-160 | 160 8/16" | 157 8/16" | 16" | 31 15/16" | (2) 5x8" |
| Flare-RC-180 | 170 9/16" | 167 9/16" | 16" | 31 15/16" | (3) 5x8" |
| Flare-RC-200 | 194 5/16" | 191 5/16" | 16" | 31 15/16" | (2) 5x8" |
| Flare-RC-210 | 200 2/16" | 197 2/16" | 16" | 31 15/16" | (3) 5x8" |
| Flare-RC-240 | 237 15/16" | 234 15/16" | 16" | 31 15/16" | (3) 5x8" |
| Flare-RC-280 | 264 15/16" | 261 15/16" | 16" | 31 15/16" | (4) 5x8" |
| Flare-RC-300 | 288 11/16" | 285 11/16" | 16" | 31 15/16" | (3) 5x8" |
| Flare-RC-320 | 315 6/16" | 312 6/16" | 16" | 31 15/16" | (4) 5x8" |
| Flare-RC-340 | 332 5/16" | 329 5/16" | 16" | 31 15/16" | (5) 5x8" |
| Flare-RC-400 | 383 1/16" | 380 1/16" | 16" | 31 15/16" | (4) 5x8" |
| Flare-RC-120-H | 115 9/16" | 112 9/16" | 24" | 39 13/16" | (2) 5x8" |
| Flare-RC-140-H | 135 4/16" | 132 4/16" | 24" | 39 13/16" | (2) 5x8" |
| Flare-RC-160-H | 160 8/16" | 157 8/16" | 24" | 39 13/16" | (2) 5x8" |
| Flare-RC-180-H | 170 9/16" | 167 9/16" | 24" | 39 13/16" | (3) 5x8" |
| Flare-RC-200-H | 194 5/16" | 191 5/16" | 24" | 39 13/16" | (2) 5x8" |
| Flare-RC-210-H | 200 2/16" | 197 2/16" | 24" | 39 13/16" | (3) 5x8" |
| Flare-RC-240-H | 237 15/16" | 234 15/16" | 24" | 39 13/16" | (3) 5x8" |
| Flare-RC-280-H | 264 15/16" | 261 15/16" | 24" | 39 13/16" | (4) 5x8" |
| Flare-RC-300-H | 288 11/16" | 285 11/16" | 24" | 39 13/16" | (3) 5x8" |
| Flare-RC-320-H | 315 6/16" | 312 6/16" | 24" | 39 13/16" | (4) 5x8" |
| Flare-RC-340-H | 332 5/16" | 329 5/16" | 24" | 39 13/16" | (5) 5x8" |
| Flare-RC-400-H | 383 1/16" | 380 1/16" | 24" | 39 13/16" | (4) 5x8" |
Product Sheets
16″ Regular Glass
24″ High Glass
3-Part Spec Sheets
16″ Regular Glass
24″ High Glass
Dimension Files
16″ Regular Glass
24″ High Glass
Framing Guides
Wood Framing
Metal Framing
Design Files
16″ Regular Glass
24″ High Glass
Manuals, Parts, and More
Fireplaces are certified and approved by CSA to be installed in North America, including California and Massachusetts.
Media Options
Features
Linear Design
The linear direct vent fireplace is designed to appear longer across your space, creating the appearance of your fireplace hanging effortlessly in your wall. The term “linear fireplace” is used to describe the long rectangular glass opening and can be specified by length and glass height.
Advanced 3D Burner
Unlike a traditional pipe burner, Flare’s 3D stainless steel burners create a deeper, taller flame that extends closer to the sides of the fireplace, allowing for a more dynamic, natural look that runs almost end-to-end in your fireplace. Standard on all our indoor fireplaces
Summit Burner
Designed to enhance the visual appeal of fireplaces with taller viewing windows, the optional Summit Burner elevates the flame into the vertical space using an advanced driftwood log burner.
Ceramic Black Reflective Back
All Flare Fireplaces have the option to upgrade to a black ceramic Reflective Back panel. This panel adds depth by increasing the reflection of your flame and media on the back or sides of your fireplace.
Multicolor LED Lighting
The optional multicolor LED kit lights up your firebox with any color in the spectrum using the included remote. Set the color and the memory will remember your choice each time you power the unit on or off. You can also power the lights independently to use the lights regardless of if the fireplace is on.
Optional Double Glass
Flare Fireplaces offers a quick touch Double Glass, which functions without the need of a power vent, across our entire lineup. This safety barrier is perfect when you are looking to achieve that crystal clear viewing window to your flame.
Wall Switch
All residential Flare Fireplaces ship standard with a simple Wall Switch as part of the purchase.
Summer Kit Heat Control
The optional Summer Kit is used to control the heat output of your cool glass or safety screen equipped Flare Fireplace. Have it dump your heat whenever the fireplace is turned on or set it to come on with a switch when you want to show off your Flare, but not the heat.
Wall Timer
Optional analog wall timers are available with every fireplace design.
Home Automation
The modern electronic gas valves equipped on all Flare Fireplaces enable your fireplace to be integrated into a new or pre-existing home automation system. Using signal relays brought to the fireplace, you can control your Flare using your Home Automation hub to control turning your fireplace on and off.
Battery Backup
Operate your screened Flare Fireplace, with no blowers, when the power goes out. Four AA batteries can keep your fireplace functioning for up to two years.
Remote Control
Every residential Flare Fireplace ships standard with a user friendly remote. This remote allows you to control the flame height, thermostat, and timer functionality built into your Flare Fireplace valve system.
Optional Power Vent
In the rare case you need to Power Vent your Flare fireplace we have three options to fit any application. Use our optional Power Vent in application that have an extremely long vent run, or when you need to drag your run under the fireplace.
Multiple Glass Heights
Flare not only offers linear fireplaces in lengths ranging from 30″ up to 400″, but we also offer multiple glass heights.16″, 24″, and 30″ heights are available in our Front Facing, See Through, & Room Definer lineup. With 16″ and 24″ available across the entire lineup.
