Built for specification

Fireplace specifications, all in one place.

Flare publishes complete fireplace specifications for more than 100 configurable indoor direct-vent linear models in sizes from 30 to 100 inches, spanning six core configurations plus the passage and traditional lines. Every model carries a full document set, so architects, designers, builders and installers can specify Flare with total confidence.

Pull a product sheet, dimension drawing and three-part specification, or drop straight into your project with native CAD (DWG), Revit (RFA) and SketchUp (SKP) files. Framing drawings, glass and screen charts, install manuals, wiring diagrams and parts lists live here too. Configure your exact model to pull its documents instantly, or browse and filter the entire library.

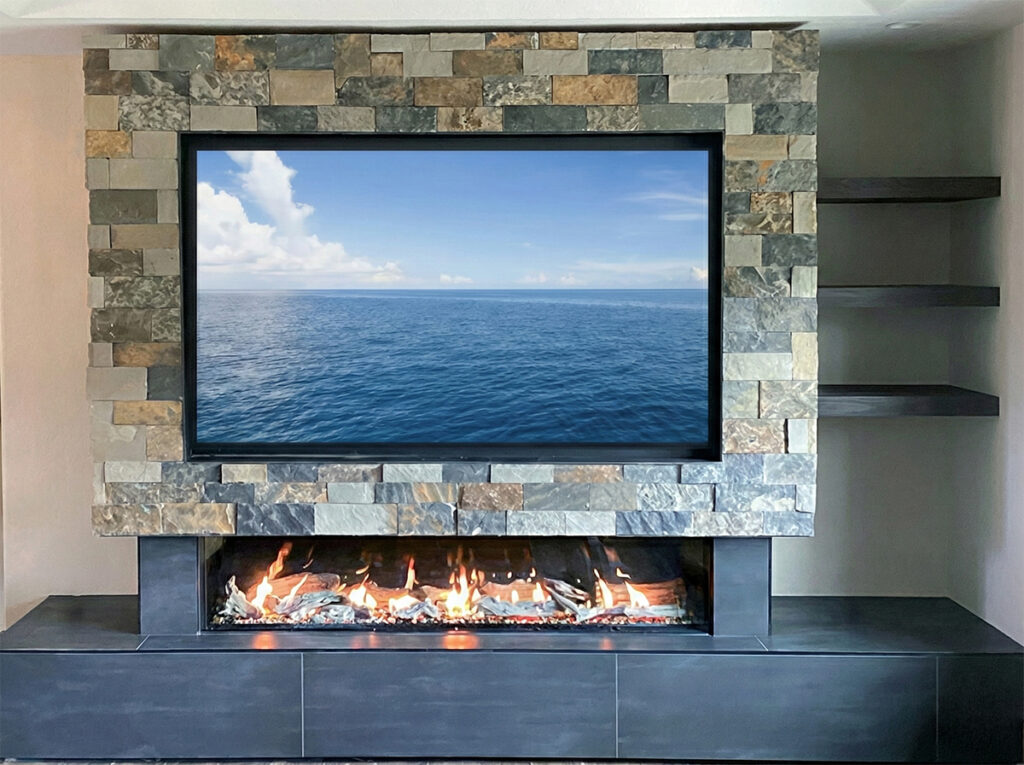

Flare indoor direct-vent linear fireplace with fireplace specifications, drawings and BIM files for architects and designers

100+

Configurable models

Core configurations

30–100″

Fireplace sizes

PDF · DWG · RFA · SKP

File formats

FAQ

Frequently asked questions

What document types can I download for each Flare fireplace?

For every model you can pull a product sheet, a dimension drawing and a three-part specification, plus native CAD (DWG), Revit (RFA) and SketchUp (SKP) files. Framing drawings, glass and screen charts, install manuals, wiring diagrams and parts lists are available as well.

Which fireplaces does the Indoor Download Center cover?

Every Flare indoor direct-vent linear model from 30 to 100 inches, across six core configurations (front-facing, see-through, left corner, right corner, double-corner and room divider), plus the passage and traditional lines.

How do I find the documents for a specific model?

Use Configure to choose a configuration, height and size and pull that exact model documents instantly, or switch to Browse to search and filter the full library by model, size or file type.

Do you provide BIM, Revit and SketchUp files?

Yes. Native Revit (RFA) and SketchUp (SKP) files, along with CAD (DWG) drawings, are available for Flare models so you can drop them directly into your BIM or 3D workflow.

Where are install manuals, wiring diagrams and parts lists?

In the Manuals, Parts and More section you will find SIT, Honeywell and Maxitrol install manuals, wiring diagrams, parts lists, glass and screen charts, and additional installation resources.

Need additional help?

Schedule a design consultation.

Talk through specs, sizing, and venting with a Flare specialist. One-on-one support for your exact project.

Schedule a consultation

Machine-readable specification feed — all 268 models as JSON, for BIM tooling and dealer systems: https://flarefireplaces.com/flare-specs.json

Indoor specification index — 122 models, 970 documents in one plain list

Every indoor model with its order SKU, dimensions in inches, and a direct link to each specification document. The file browser above is the quicker way to find one file; this list exists so the whole library can be read at once, and so it is readable by software that does not run JavaScript.

122 models. Direct vent.

Flare-FF-25-EH

Ordering SKU DVFF25E

30 in Extra High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 30,000 BTU/h max · Liquid propane 23,000 BTU/h max

Full Width 24 3/4" · Viewing Window Width 20 7/16" · Viewing Window Height 30" · Full Height Minus Legs 42 1/8" · Vent Adapter Size 4x6"

Flare-FF-25-EH CAD Drawing (.dwg) AutoCAD drawing · 1.5 MB · updated 6 Jan 2026
Flare-FF-25-EH Three-Part Specification (.docx) Word document · 115 KB · updated 2 Sep 2026
Flare-FF-25-EH Dimension Drawing (.pdf) PDF document · 129 KB · updated 24 Sep 2025
Flare-FF-25-EH Product Sheet (.pdf) PDF document · 216 KB · updated 2 Sep 2026
Flare-FF-25-EH SketchUp Model (.skp) SketchUp model · 8.1 MB · updated 28 Jan 2026
Flare-FF-25-EH Framing Guide - wood (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026
Flare-FF-25-EH Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026

Flare-DC-30-H

Ordering SKU DVDC30H

24 in High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 34,000 BTU/h max · Liquid propane 23,000 BTU/h max

Full Width 30 9/16" · Viewing Window Width 30 7/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 4"x6"

Flare-DC-30-H CAD Drawing (.dwg) AutoCAD drawing · 289 KB · updated 20 Aug 2019
Flare-DC-30-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-30-H Dimension Drawing (.pdf) PDF document · 135 KB · updated 20 Aug 2019
Flare-DC-30-H Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-DC-30-H SketchUp Model (.skp) SketchUp model · 1.5 MB · updated 18 May 2020
Flare-DC-30-H Revit / BIM Model (.rfa) Revit family · 9.3 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-DC-30-H Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-DC-30-H Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-FF-30-H

Ordering SKU DVFF30H

24 in High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 34,000 BTU/h max · Liquid propane 23,000 BTU/h max

Full Width 32 5/8" · Viewing Window Width 28 1/4" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 4x6"

Flare-FF-30-H CAD Drawing (.dwg) AutoCAD drawing · 602 KB · updated 12 Jul 2019
Flare-FF-30-H Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-FF-30-H Dimension Drawing (.pdf) PDF document · 84 KB · updated 12 Jul 2019
Flare-FF-30-H Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-FF-30-H SketchUp Model (.skp) SketchUp model · 2.6 MB · updated 21 May 2020
Flare-FF-30-H Revit / BIM Model (.rfa) Revit family · 10 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-FF-30-H Framing Guide - wood (.pdf) PDF document · 1.7 MB · updated 4 Oct 2024
Flare-FF-30-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-FF-30-R

Ordering SKU DVFF30R

16 in Regular glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 34,000 BTU/h max · Liquid propane 23,000 BTU/h max

Full Width 32 5/8" · Viewing Window Width 28 1/4" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 4x6"

Flare-FF-30-R CAD Drawing (.dwg) AutoCAD drawing · 335 KB · updated 8 Aug 2024
Flare-FF-30-R Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-FF-30-R Dimension Drawing (.pdf) PDF document · 80 KB · updated 8 Aug 2024
Flare-FF-30-R Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-FF-30-R SketchUp Model (.skp) SketchUp model · 2.5 MB · updated 20 Aug 2025
Flare-FF-30-R Framing Guide - wood (.pdf) PDF document · 1.5 MB · updated 4 Oct 2024
Flare-FF-30-R Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-LC-30-H

Ordering SKU DVLC30H

24 in High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 34,000 BTU/h max · Liquid propane 23,000 BTU/h max

Full Width 30 9/16" · Viewing Window Width 28 1/8" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 4x6

Flare-LC-30-H CAD Drawing (.dwg) AutoCAD drawing · 293 KB · updated 20 Aug 2019
Flare-LC-30-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-30-H Dimension Drawing (.pdf) PDF document · 135 KB · updated 20 Aug 2019
Flare-LC-30-H Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-LC-30-H SketchUp Model (.skp) SketchUp model · 1.4 MB · updated 18 May 2020
Flare-LC-30-H Revit / BIM Model (.rfa) Revit family · 9.2 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-LC-30-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-30-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-PASS-FF-30-EH

Ordering SKU DVPAFF

60" viewing window glass · Direct vent · Indoor installation

Natural gas 34,000 BTU/h max · Liquid propane 23,000 BTU/h max

Full Width 32 13/16" · Viewing Window Width 28 5/16" · Viewing Window Height 60" · Full Height Minus Legs 72 5/16" · E 18 1/16" · F 10"-19" · Vent Adapter Size 5x8"

Flare-PASS-FF-30-EH Product Sheet (.pdf) PDF document · 98 KB · updated 26 Jun 2026
Flare-PASS-FF-30-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-PASS-FF-30-EH Dimension Drawing (.pdf) PDF document · 270 KB · updated 1 Dec 2022
Flare-PASS-FF-30-EH Framing Guide - wood (.pdf) PDF document · 1.4 MB · updated 4 Oct 2024
Flare-PASS-FF-30-EH Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025
Flare-PASS-FF-30-EH CAD Drawing (.dwg) AutoCAD drawing · 395 KB · updated 5 Sep 2019
Flare-PASS-FF-30-EH SketchUp Model (.skp) SketchUp model · 2.9 MB · updated 9 Jun 2026
Flare-PASS-FF-30-EH Revit / BIM Model (.rfa) Revit family · 9.7 MB · updated 30 Sep 2020 · Revit version not recorded

Flare-PASS-ST-30-EH

Ordering SKU DVPAST

60" viewing window glass · Direct vent · Indoor installation

Natural gas 34,000 BTU/h max · Liquid propane 23,000 BTU/h max

Full Width 32 13/16" · Viewing Window Width 28 5/16" · Viewing Window Height 60" · Full Height Minus Legs 72 5/16" · E 18 1/16" · F 10"-19" · Vent Adapter Size 5x8"

Flare-PASS-ST-30-EH Product Sheet (.pdf) PDF document · 96 KB · updated 26 Jun 2026
Flare-PASS-ST-30-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-PASS-ST-30-EH Dimension Drawing (.pdf) PDF document · 155 KB · updated 5 Sep 2019
Flare-PASS-ST-30-EH Framing Guide - wood (.pdf) PDF document · 1023 KB · updated 4 Oct 2024
Flare-PASS-ST-30-EH Framing Guide - metal (.pdf) PDF document · 908 KB · updated 28 Oct 2025
Flare-PASS-ST-30-EH CAD Drawing (.dwg) AutoCAD drawing · 395 KB · updated 5 Sep 2019
Flare-PASS-ST-30-EH SketchUp Model (.skp) SketchUp model · 2.4 MB · updated 18 May 2020
Flare-PASS-ST-30-EH Revit / BIM Model (.rfa) Revit family · 9.8 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-PASS-ST-30-EH Dimension Drawing - Outdoor Kit (.pdf) PDF document · 120 KB · updated 23 Sep 2024
Flare-PASS-ST-30-EH Framing Guide - wood - Outdoor Kit (.pdf) PDF document · 924 KB · updated 4 Oct 2024
Flare-PASS-ST-30-EH Framing Guide - metal - Outdoor Kit (.pdf) PDF document · 819 KB · updated 28 Oct 2025
Flare-PASS-ST-30-EH CAD Drawing - Outdoor Kit (.dwg) AutoCAD drawing · 520 KB · updated 23 Sep 2024
Flare-PASS-ST-30-EH SketchUp Model - Outdoor Kit (.skp) SketchUp model · 10.4 MB · updated 13 Jun 2025

Flare-RC-30-H

Ordering SKU DVRC30H

24 in High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 34,000 BTU/h max · Liquid propane 23,000 BTU/h max

Full Width 30 9/16" · Viewing Window Width 28 1/2" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 4x6"

Flare-RC-30-H CAD Drawing (.dwg) AutoCAD drawing · 241 KB · updated 20 Aug 2019
Flare-RC-30-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-30-H Dimension Drawing (.pdf) PDF document · 126 KB · updated 20 Aug 2019
Flare-RC-30-H Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-RC-30-H SketchUp Model (.skp) SketchUp model · 1.4 MB · updated 18 May 2020
Flare-RC-30-H Revit / BIM Model (.rfa) Revit family · 11.4 MB · updated 8 Dec 2020 · Revit version not recorded
Flare-RC-30-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-30-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-ST-30-H

Ordering SKU DVST30H

24 in High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 34,000 BTU/h max · Liquid propane 23,000 BTU/h max

Full Width 32 13/16" · Viewing Window Width 28 1/4" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 4"x6"

Flare-ST-30-H CAD Drawing (.dwg) AutoCAD drawing · 272 KB · updated 17 Jul 2019
Flare-ST-30-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-30-H Dimension Drawing (.pdf) PDF document · 86 KB · updated 15 Jul 2019
Flare-ST-30-H Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-ST-30-H SketchUp Model (.skp) SketchUp model · 2.8 MB · updated 18 May 2020
Flare-ST-30-H Revit / BIM Model (.rfa) Revit family · 24.6 MB · updated 8 Dec 2020 · Revit version not recorded
Flare-ST-30-H Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Oct 2024
Flare-ST-30-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-ST-30

Ordering SKU DVST30R

16 in Regular glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 34,000 BTU/h max · Liquid propane 23,000 BTU/h max

Full Width 32 3/4" · Viewing Window Width 28 1/4" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 4"x6"

Flare-ST-30 CAD Drawing (.dwg) AutoCAD drawing · 375 KB · updated 8 Aug 2024
Flare-ST-30 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-30 Dimension Drawing (.pdf) PDF document · 86 KB · updated 8 Aug 2024
Flare-ST-30 Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-ST-30 SketchUp Model (.skp) SketchUp model · 16.8 MB · updated 6 Sep 2024
Flare-ST-30 Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Nov 2024
Flare-ST-30 Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-TRA-42

Ordering SKU DVTRA42

32 1/16" viewing window glass · Direct vent · Indoor installation

Natural gas 37,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 42 1/4" · Viewing Window Width 38 11/16" · Viewing Window Height 32 1/16" · Full Height Minus Legs 41 3/8" · Vent Adapter Size 5x8"

Flare-TRA-42 Product Sheet (.pdf) PDF document · 99 KB · updated 19 Aug 2026
Flare-TRA-42 Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-TRA-42 Dimension Drawing (.pdf) PDF document · 79 KB · updated 6 May 2024
Flare-TRA-42 CAD Drawing (.dwg) AutoCAD drawing · 464 KB · updated 27 Feb 2023
Flare-TRA-42 SketchUp Model (.skp) SketchUp model · 16.2 MB · updated 3 Sep 2025
Flare-TRA-42 Revit / BIM Model (.rfa) Revit family · 21.3 MB · updated 3 Sep 2024 · Revit version not recorded

Flare-TRA-BON-42

Ordering SKU TRABON42

32 1/16" viewing window glass · Direct vent · Indoor installation

Natural gas 37,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 42 1/4" · Viewing Window Width 38 11/16" · Viewing Window Height 32 1/16" · Full Height Minus Legs 41 3/8" · Vent Adapter Size 5x8"

Flare-TRA-BON-42 Product Sheet (.pdf) PDF document · 99 KB · updated 19 Aug 2026
Flare-TRA-BON-42 Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-TRA-BON-42 Dimension Drawing (.pdf) PDF document · 79 KB · updated 6 May 2024
Flare-TRA-BON-42 CAD Drawing (.dwg) AutoCAD drawing · 464 KB · updated 27 Feb 2023
Flare-TRA-BON-42 SketchUp Model (.skp) SketchUp model · 16.2 MB · updated 3 Sep 2025
Flare-TRA-BON-42 Revit / BIM Model (.rfa) Revit family · 21.3 MB · updated 3 Sep 2024 · Revit version not recorded

Flare-DC-45-EH

Ordering SKU DVDC45E

30 in Extra High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 43 9/16" · Viewing Window Width 43 7/16" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 4"x6"

Flare-DC-45-EH CAD Drawing (.dwg) AutoCAD drawing · 584 KB · updated 27 Jul 2023
Flare-DC-45-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-45-EH Dimension Drawing (.pdf) PDF document · 93 KB · updated 6 Sep 2023
Flare-DC-45-EH Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-DC-45-EH SketchUp Model (.skp) SketchUp model · 6.7 MB · updated 2 Apr 2025
Flare-DC-45-EH Revit / BIM Model (.rfa) Revit family · 25.5 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-DC-45-EH Framing Guide - wood (.pdf) PDF document · 1.4 MB · updated 4 Oct 2024
Flare-DC-45-EH Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-DC-45-H

Ordering SKU DVDC45H

24 in High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 43 9/16" · Viewing Window Width 43 7/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 4"x6"

Flare-DC-45-H CAD Drawing (.dwg) AutoCAD drawing · 444 KB · updated 24 Aug 2020
Flare-DC-45-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-45-H Dimension Drawing (.pdf) PDF document · 136 KB · updated 20 Aug 2019
Flare-DC-45-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-DC-45-H SketchUp Model (.skp) SketchUp model · 1.4 MB · updated 13 May 2020
Flare-DC-45-H Revit / BIM Model (.rfa) Revit family · 9.2 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-DC-45-H Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-DC-45-H Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-DC-45

Ordering SKU DVDC45R

16 in Regular glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 43 9/16" · Viewing Window Width 43 7/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 4"x6"

Flare-DC-45 CAD Drawing (.dwg) AutoCAD drawing · 455 KB · updated 24 Aug 2020
Flare-DC-45 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-45 Dimension Drawing (.pdf) PDF document · 135 KB · updated 20 Aug 2019
Flare-DC-45 Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-DC-45 SketchUp Model (.skp) SketchUp model · 593 KB · updated 2 Sep 2026
Flare-DC-45 Revit / BIM Model (.rfa) Revit family · 740 KB · updated 23 Sep 2020 · Revit version not recorded
Flare-DC-45 Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-DC-45 Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-FF-45-EH

Ordering SKU DVFF45E

30 in Extra High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 45 9/16" · Viewing Window Width 41 1/4" · Viewing Window Height 30" · Full Height Minus Legs 42 1/8" · Vent Adapter Size 4x6"

Flare-FF-45-EH CAD Drawing (.dwg) AutoCAD drawing · 604 KB · updated 12 Jul 2019
Flare-FF-45-EH Three-Part Specification (.docx) Word document · 115 KB · updated 2 Sep 2026
Flare-FF-45-EH Dimension Drawing (.pdf) PDF document · 86 KB · updated 12 Jul 2019
Flare-FF-45-EH Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-FF-45-EH SketchUp Model (.skp) SketchUp model · 3.3 MB · updated 1 Apr 2020
Flare-FF-45-EH Revit / BIM Model (.rfa) Revit family · 20.9 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-FF-45-EH Framing Guide - wood (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026
Flare-FF-45-EH Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026

Flare-FF-45-H

Ordering SKU DVFF45H

24 in High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 45 9/16" · Viewing Window Width 41 1/4" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 4x6"

Flare-FF-45-H CAD Drawing (.dwg) AutoCAD drawing · 600 KB · updated 12 Jul 2019
Flare-FF-45-H Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-FF-45-H Dimension Drawing (.pdf) PDF document · 84 KB · updated 12 Jul 2019
Flare-FF-45-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-FF-45-H SketchUp Model (.skp) SketchUp model · 3 MB · updated 1 Apr 2020
Flare-FF-45-H Revit / BIM Model (.rfa) Revit family · 10.3 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-FF-45-H Framing Guide - wood (.pdf) PDF document · 1.7 MB · updated 4 Oct 2024
Flare-FF-45-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-FF-45

Ordering SKU DVFF45R

16 in Regular glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 45 9/16" · Viewing Window Width 41 1/4" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 4x6"

Flare-FF-45 CAD Drawing (.dwg) AutoCAD drawing · 608 KB · updated 12 Jul 2019
Flare-FF-45 Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-FF-45 Dimension Drawing (.pdf) PDF document · 89 KB · updated 12 Jul 2019
Flare-FF-45 Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-FF-45 SketchUp Model (.skp) SketchUp model · 3.3 MB · updated 1 Apr 2020
Flare-FF-45 Revit / BIM Model (.rfa) Revit family · 10.3 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-FF-45 Framing Guide - wood (.pdf) PDF document · 1.5 MB · updated 4 Oct 2024
Flare-FF-45 Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-LC-45-EH

Ordering SKU DVLC45E

30 in Extra High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 43 1/2" · Viewing Window Width 41 1/16" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 4x6

Flare-LC-45-EH CAD Drawing (.dwg) AutoCAD drawing · 1.1 MB · updated 27 Jul 2023
Flare-LC-45-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-45-EH Dimension Drawing (.pdf) PDF document · 91 KB · updated 27 Jul 2023
Flare-LC-45-EH Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-LC-45-EH SketchUp Model (.skp) SketchUp model · 6.7 MB · updated 2 Apr 2025
Flare-LC-45-EH Revit / BIM Model (.rfa) Revit family · 25.5 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-LC-45-EH Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-45-EH Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-LC-45-H

Ordering SKU DVLC45H

24 in High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 43 9/16" · Viewing Window Width 41 1/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 4x6

Flare-LC-45-H CAD Drawing (.dwg) AutoCAD drawing · 446 KB · updated 24 Aug 2020
Flare-LC-45-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-45-H Dimension Drawing (.pdf) PDF document · 136 KB · updated 20 Aug 2019
Flare-LC-45-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-LC-45-H SketchUp Model (.skp) SketchUp model · 1.3 MB · updated 13 May 2020
Flare-LC-45-H Revit / BIM Model (.rfa) Revit family · 9.1 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-LC-45-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-45-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-LC-45

Ordering SKU DVLC45R

16 in Regular glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 43 9/16" · Viewing Window Width 41 1/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 4x6

Flare-LC-45 CAD Drawing (.dwg) AutoCAD drawing · 469 KB · updated 24 Aug 2020
Flare-LC-45 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-45 Dimension Drawing (.pdf) PDF document · 142 KB · updated 20 Aug 2019
Flare-LC-45 Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-LC-45 SketchUp Model (.skp) SketchUp model · 1.5 MB · updated 13 May 2020
Flare-LC-45 Revit / BIM Model (.rfa) Revit family · 9.3 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-LC-45 Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-45 Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-45-EH

Ordering SKU DVRC45E

30 in Extra High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 43 1/2" · Viewing Window Width 41 1/16" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 4x6"

Flare-RC-45-EH CAD Drawing (.dwg) AutoCAD drawing · 525 KB · updated 27 Jul 2023
Flare-RC-45-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-45-EH Dimension Drawing (.pdf) PDF document · 77 KB · updated 27 Jul 2023
Flare-RC-45-EH Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-RC-45-EH SketchUp Model (.skp) SketchUp model · 6.8 MB · updated 2 Apr 2025
Flare-RC-45-EH Revit / BIM Model (.rfa) Revit family · 25.6 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-RC-45-EH Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-45-EH Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-45-H

Ordering SKU DVRC45H

24 in High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 43 9/16" · Viewing Window Width 41 1/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 4x6"

Flare-RC-45-H CAD Drawing (.dwg) AutoCAD drawing · 428 KB · updated 24 Aug 2020
Flare-RC-45-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-45-H Dimension Drawing (.pdf) PDF document · 128 KB · updated 20 Aug 2019
Flare-RC-45-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-RC-45-H SketchUp Model (.skp) SketchUp model · 1.3 MB · updated 13 May 2020
Flare-RC-45-H Revit / BIM Model (.rfa) Revit family · 9.1 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RC-45-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-45-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-45

Ordering SKU DVRC45R

16 in Regular glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 43 9/16" · Viewing Window Width 41 1/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 4x6"

Flare-RC-45 CAD Drawing (.dwg) AutoCAD drawing · 444 KB · updated 24 Aug 2020
Flare-RC-45 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-45 Dimension Drawing (.pdf) PDF document · 135 KB · updated 20 Aug 2019
Flare-RC-45 Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-RC-45 SketchUp Model (.skp) SketchUp model · 1.6 MB · updated 13 May 2020
Flare-RC-45 Revit / BIM Model (.rfa) Revit family · 9.3 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-RC-45 Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-45 Framing Guide - metal (.pdf) PDF document · 1021 KB · updated 28 Oct 2025

Flare-RD-45-EH

Ordering SKU DVRD45E

30 in Extra High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 46 15/16" · Viewing Window Width 41" · Viewing Window Height 30" · Full Height Minus Legs 42 7/8" · Vent Adapter Size 5x8

Flare-RD-45-EH CAD Drawing (.dwg) AutoCAD drawing · 581 KB · updated 25 Jul 2019
Flare-RD-45-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-45-EH Dimension Drawing (.pdf) PDF document · 84 KB · updated 25 Jul 2019
Flare-RD-45-EH Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-RD-45-EH SketchUp Model (.skp) SketchUp model · 2.6 MB · updated 18 May 2020
Flare-RD-45-EH Revit / BIM Model (.rfa) Revit family · 9.9 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RD-45-EH Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-RD-45-EH Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-RD-45-H

Ordering SKU DVRD45H

24 in High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 46 15/16" · Viewing Window Width 41" · Viewing Window Height 24" · Full Height Minus Legs 36 5/8" · Vent Adapter Size 5x8

Flare-RD-45-H CAD Drawing (.dwg) AutoCAD drawing · 581 KB · updated 25 Jul 2019
Flare-RD-45-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-45-H Dimension Drawing (.pdf) PDF document · 81 KB · updated 25 Jul 2019
Flare-RD-45-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-RD-45-H SketchUp Model (.skp) SketchUp model · 2.4 MB · updated 18 May 2020
Flare-RD-45-H Revit / BIM Model (.rfa) Revit family · 9.9 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-RD-45-H Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-RD-45-H Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-RD-45

Ordering SKU DVRD45R

16 in Regular glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 46 15/16" · Viewing Window Width 41" · Viewing Window Height 16" · Full Height Minus Legs 28 3/4" · Vent Adapter Size 5x8

Flare-RD-45 CAD Drawing (.dwg) AutoCAD drawing · 581 KB · updated 25 Jul 2019
Flare-RD-45 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-45 Dimension Drawing (.pdf) PDF document · 84 KB · updated 25 Jul 2019
Flare-RD-45 Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-RD-45 SketchUp Model (.skp) SketchUp model · 2.5 MB · updated 18 May 2020
Flare-RD-45 Revit / BIM Model (.rfa) Revit family · 9.9 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-RD-45 Framing Guide - wood (.pdf) PDF document · 1.7 MB · updated 4 Oct 2024
Flare-RD-45 Framing Guide - metal (.pdf) PDF document · 1.2 MB · updated 28 Oct 2025

Flare-ST-45-EH

Ordering SKU DVST45E

30 in Extra High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 45 13/16" · Viewing Window Width 41 1/4" · Viewing Window Height 30" · Full Height Minus Legs 42 1/8" · Vent Adapter Size 4"x6"

Flare-ST-45-EH CAD Drawing (.dwg) AutoCAD drawing · 629 KB · updated 17 Jul 2019
Flare-ST-45-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-45-EH Dimension Drawing (.pdf) PDF document · 92 KB · updated 15 Jul 2019
Flare-ST-45-EH Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-ST-45-EH SketchUp Model (.skp) SketchUp model · 2.9 MB · updated 1 Apr 2020
Flare-ST-45-EH Revit / BIM Model (.rfa) Revit family · 6.3 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-ST-45-EH Framing Guide - wood (.pdf) PDF document · 1.3 MB · updated 24 Feb 2026
Flare-ST-45-EH Framing Guide - metal (.pdf) PDF document · 1.4 MB · updated 24 Feb 2026

Flare-ST-45-H

Ordering SKU DVST45H

24 in High glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 45 13/16" · Viewing Window Width 41 1/4" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 4"x6"

Flare-ST-45-H CAD Drawing (.dwg) AutoCAD drawing · 624 KB · updated 16 Sep 2019
Flare-ST-45-H Three-Part Specification (.docx) Word document · 115 KB · updated 2 Sep 2026
Flare-ST-45-H Dimension Drawing (.pdf) PDF document · 90 KB · updated 15 Jul 2019
Flare-ST-45-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-ST-45-H SketchUp Model (.skp) SketchUp model · 3.1 MB · updated 1 Apr 2020
Flare-ST-45-H Revit / BIM Model (.rfa) Revit family · 10.1 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-45-H Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Oct 2024
Flare-ST-45-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-ST-45

Ordering SKU DVST45R

16 in Regular glass · Direct vent · Indoor installation · 4" x 6" vent

Natural gas 36,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 45 13/16" · Viewing Window Width 41 1/4" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 4"x6"

Flare-ST-45 CAD Drawing (.dwg) AutoCAD drawing · 625 KB · updated 17 Jul 2019
Flare-ST-45 Three-Part Specification (.docx) Word document · 115 KB · updated 2 Sep 2026
Flare-ST-45 Dimension Drawing (.pdf) PDF document · 90 KB · updated 15 Jul 2019
Flare-ST-45 Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-ST-45 SketchUp Model (.skp) SketchUp model · 3.1 MB · updated 1 Apr 2020
Flare-ST-45 Revit / BIM Model (.rfa) Revit family · 10.2 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-45 Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Nov 2024
Flare-ST-45 Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-TRA-46

Ordering SKU DVTRA46

36" viewing window glass · Direct vent · Indoor installation

Natural gas 37,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 46" · Viewing Window Width 42 7/16" · Viewing Window Height 36" · Full Height Minus Legs 45 5/16" · Vent Adapter Size 5x8"

Flare-TRA-46 Product Sheet (.pdf) PDF document · 101 KB · updated 19 Aug 2026
Flare-TRA-46 Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-TRA-46 Dimension Drawing (.pdf) PDF document · 77 KB · updated 6 May 2024
Flare-TRA-46 CAD Drawing (.dwg) AutoCAD drawing · 434 KB · updated 7 Mar 2023
Flare-TRA-46 SketchUp Model (.skp) SketchUp model · 7.4 MB · updated 18 Aug 2025
Flare-TRA-46 Revit / BIM Model (.rfa) Revit family · 21.2 MB · updated 3 Sep 2024 · Revit version not recorded

Flare-TRA-BON-46

Ordering SKU TRABON46

36" viewing window glass · Direct vent · Indoor installation

Natural gas 37,000 BTU/h max · Liquid propane 28,000 BTU/h max

Full Width 46" · Viewing Window Width 42 7/16" · Viewing Window Height 36" · Full Height Minus Legs 45 5/16" · Vent Adapter Size 5x8"

Flare-TRA-BON-46 Product Sheet (.pdf) PDF document · 99 KB · updated 19 Aug 2026
Flare-TRA-BON-46 Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-TRA-BON-46 Dimension Drawing (.pdf) PDF document · 77 KB · updated 6 May 2024
Flare-TRA-BON-46 CAD Drawing (.dwg) AutoCAD drawing · 434 KB · updated 7 Mar 2023
Flare-TRA-BON-46 SketchUp Model (.skp) SketchUp model · 7.4 MB · updated 18 Aug 2025
Flare-TRA-BON-46 Revit / BIM Model (.rfa) Revit family · 21.2 MB · updated 3 Sep 2024 · Revit version not recorded

Flare-DC-50-EH

Ordering SKU DVDC50E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 50 1/4" · Viewing Window Width 50 1/8" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5"x8"

Flare-DC-50-EH CAD Drawing (.dwg) AutoCAD drawing · 606 KB · updated 27 Jul 2023
Flare-DC-50-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-50-EH Dimension Drawing (.pdf) PDF document · 93 KB · updated 6 Sep 2023
Flare-DC-50-EH Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-DC-50-EH SketchUp Model (.skp) SketchUp model · 10.5 MB · updated 2 Apr 2025
Flare-DC-50-EH Revit / BIM Model (.rfa) Revit family · 30.5 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-DC-50-EH Framing Guide - wood (.pdf) PDF document · 1.4 MB · updated 4 Oct 2024
Flare-DC-50-EH Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-DC-50-H

Ordering SKU DVDC50H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 50 1/4" · Viewing Window Width 50 1/8" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5"x8"

Flare-DC-50-H CAD Drawing (.dwg) AutoCAD drawing · 454 KB · updated 24 Aug 2020
Flare-DC-50-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-50-H Dimension Drawing (.pdf) PDF document · 201 KB · updated 20 Aug 2019
Flare-DC-50-H Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-DC-50-H SketchUp Model (.skp) SketchUp model · 3 MB · updated 13 May 2020
Flare-DC-50-H Revit / BIM Model (.rfa) Revit family · 9.2 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-DC-50-H Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-DC-50-H Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-DC-50

Ordering SKU DVDC50R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 50 1/4" · Viewing Window Width 50 1/8" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5"x8"

Flare-DC-50 CAD Drawing (.dwg) AutoCAD drawing · 456 KB · updated 24 Aug 2020
Flare-DC-50 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-50 Dimension Drawing (.pdf) PDF document · 197 KB · updated 20 Aug 2019
Flare-DC-50 Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-DC-50 SketchUp Model (.skp) SketchUp model · 566 KB · updated 2 Sep 2026
Flare-DC-50 Revit / BIM Model (.rfa) Revit family · 1.6 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-DC-50 Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-DC-50 Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-FF-50-EH

Ordering SKU DVFF50E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 52 5/16" · Viewing Window Width 47 15/16" · Viewing Window Height 30" · Full Height Minus Legs 42 1/8" · Vent Adapter Size 5x8"

Flare-FF-50-EH CAD Drawing (.dwg) AutoCAD drawing · 629 KB · updated 12 Jul 2019
Flare-FF-50-EH Three-Part Specification (.docx) Word document · 115 KB · updated 2 Sep 2026
Flare-FF-50-EH Dimension Drawing (.pdf) PDF document · 91 KB · updated 12 Jul 2019
Flare-FF-50-EH Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-FF-50-EH SketchUp Model (.skp) SketchUp model · 2.8 MB · updated 1 Apr 2020
Flare-FF-50-EH Revit / BIM Model (.rfa) Revit family · 10.1 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-FF-50-EH Framing Guide - wood (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026
Flare-FF-50-EH Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026

Flare-FF-50-H

Ordering SKU DVFF50H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 52 5/16" · Viewing Window Width 47 15/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8"

Flare-FF-50-H CAD Drawing (.dwg) AutoCAD drawing · 629 KB · updated 12 Jul 2019
Flare-FF-50-H Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-FF-50-H Dimension Drawing (.pdf) PDF document · 92 KB · updated 12 Jul 2019
Flare-FF-50-H Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-FF-50-H SketchUp Model (.skp) SketchUp model · 2.9 MB · updated 1 Apr 2020
Flare-FF-50-H Revit / BIM Model (.rfa) Revit family · 1 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-FF-50-H Framing Guide - wood (.pdf) PDF document · 1.7 MB · updated 4 Oct 2024
Flare-FF-50-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-FF-50

Ordering SKU DVFF50R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 52 5/16" · Viewing Window Width 47 15/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8"

Flare-FF-50 CAD Drawing (.dwg) AutoCAD drawing · 634 KB · updated 12 Jul 2019
Flare-FF-50 Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-FF-50 Dimension Drawing (.pdf) PDF document · 94 KB · updated 12 Jul 2019
Flare-FF-50 Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-FF-50 SketchUp Model (.skp) SketchUp model · 2.9 MB · updated 1 Apr 2020
Flare-FF-50 Revit / BIM Model (.rfa) Revit family · 2.7 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-FF-50 Framing Guide - wood (.pdf) PDF document · 1.5 MB · updated 4 Oct 2024
Flare-FF-50 Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-LC-50-EH

Ordering SKU DVLC50E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 50 3/16" · Viewing Window Width 47 13/16" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5x8

Flare-LC-50-EH CAD Drawing (.dwg) AutoCAD drawing · 611 KB · updated 27 Jul 2023
Flare-LC-50-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-50-EH Dimension Drawing (.pdf) PDF document · 94 KB · updated 27 Jul 2023
Flare-LC-50-EH Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-LC-50-EH SketchUp Model (.skp) SketchUp model · 10.4 MB · updated 2 Apr 2025
Flare-LC-50-EH Revit / BIM Model (.rfa) Revit family · 30.4 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-LC-50-EH Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-50-EH Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-LC-50-H

Ordering SKU DVLC50H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 50 1/4" · Viewing Window Width 47 13/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8

Flare-LC-50-H CAD Drawing (.dwg) AutoCAD drawing · 453 KB · updated 24 Aug 2020
Flare-LC-50-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-50-H Dimension Drawing (.pdf) PDF document · 199 KB · updated 20 Aug 2019
Flare-LC-50-H Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-LC-50-H SketchUp Model (.skp) SketchUp model · 1.4 MB · updated 13 May 2020
Flare-LC-50-H Revit / BIM Model (.rfa) Revit family · 9.1 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-LC-50-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-50-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-LC-50

Ordering SKU DVLC50R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 50 1/4" · Viewing Window Width 47 13/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8

Flare-LC-50 CAD Drawing (.dwg) AutoCAD drawing · 456 KB · updated 24 Aug 2020
Flare-LC-50 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-50 Dimension Drawing (.pdf) PDF document · 198 KB · updated 20 Aug 2019
Flare-LC-50 Product Sheet (.pdf) PDF document · 228 KB · updated 21 Oct 2025
Flare-LC-50 SketchUp Model (.skp) SketchUp model · 1.4 MB · updated 13 May 2020
Flare-LC-50 Revit / BIM Model (.rfa) Revit family · 9.1 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-LC-50 Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-50 Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-50-EH

Ordering SKU DVRC50E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 50 3/16" · Viewing Window Width 47 13/16" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5x8"

Flare-RC-50-EH CAD Drawing (.dwg) AutoCAD drawing · 543 KB · updated 27 Jul 2023
Flare-RC-50-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-50-EH Dimension Drawing (.pdf) PDF document · 80 KB · updated 27 Jul 2023
Flare-RC-50-EH Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-RC-50-EH SketchUp Model (.skp) SketchUp model · 31.7 MB · updated 2 Apr 2025
Flare-RC-50-EH Revit / BIM Model (.rfa) Revit family · 30.4 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-RC-50-EH Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-50-EH Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-50-H

Ordering SKU DVRC50H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 50 1/4" · Viewing Window Width 47 13/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8"

Flare-RC-50-H CAD Drawing (.dwg) AutoCAD drawing · 436 KB · updated 24 Aug 2020
Flare-RC-50-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-50-H Dimension Drawing (.pdf) PDF document · 191 KB · updated 20 Aug 2019
Flare-RC-50-H Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-RC-50-H SketchUp Model (.skp) SketchUp model · 1.4 MB · updated 13 May 2020
Flare-RC-50-H Revit / BIM Model (.rfa) Revit family · 9.1 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RC-50-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-50-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-50

Ordering SKU DVRC50R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 50 1/4" · Viewing Window Width 47 13/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8"

Flare-RC-50 CAD Drawing (.dwg) AutoCAD drawing · 435 KB · updated 24 Aug 2020
Flare-RC-50 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-50 Dimension Drawing (.pdf) PDF document · 189 KB · updated 20 Aug 2019
Flare-RC-50 Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-RC-50 SketchUp Model (.skp) SketchUp model · 1.4 MB · updated 13 May 2020
Flare-RC-50 Revit / BIM Model (.rfa) Revit family · 9.1 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-RC-50 Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-50 Framing Guide - metal (.pdf) PDF document · 1021 KB · updated 28 Oct 2025

Flare-RD-50-EH

Ordering SKU DVRD50E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 53" · Viewing Window Width 47 11/16" · Viewing Window Height 30" · Full Height Minus Legs 42 7/8" · Vent Adapter Size 5x8

Flare-RD-50-EH CAD Drawing (.dwg) AutoCAD drawing · 610 KB · updated 25 Jul 2019
Flare-RD-50-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-50-EH Dimension Drawing (.pdf) PDF document · 88 KB · updated 25 Jul 2019
Flare-RD-50-EH Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-RD-50-EH SketchUp Model (.skp) SketchUp model · 1.4 MB · updated 18 May 2020
Flare-RD-50-EH Revit / BIM Model (.rfa) Revit family · 9.2 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RD-50-EH Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-RD-50-EH Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-RD-50-H

Ordering SKU DVRD50H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 53" · Viewing Window Width 47 11/16" · Viewing Window Height 24" · Full Height Minus Legs 36 5/8" · Vent Adapter Size 5x8

Flare-RD-50-H CAD Drawing (.dwg) AutoCAD drawing · 633 KB · updated 25 Jul 2019
Flare-RD-50-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-50-H Dimension Drawing (.pdf) PDF document · 101 KB · updated 25 Jul 2019
Flare-RD-50-H Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-RD-50-H SketchUp Model (.skp) SketchUp model · 1.3 MB · updated 18 May 2020
Flare-RD-50-H Revit / BIM Model (.rfa) Revit family · 9.1 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-RD-50-H Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-RD-50-H Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-RD-50

Ordering SKU DVRD50R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 53" · Viewing Window Width 47 11/16" · Viewing Window Height 16" · Full Height Minus Legs 28 3/4" · Vent Adapter Size 5x8

Flare-RD-50 CAD Drawing (.dwg) AutoCAD drawing · 601 KB · updated 25 Jul 2019
Flare-RD-50 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-50 Dimension Drawing (.pdf) PDF document · 87 KB · updated 25 Jul 2019
Flare-RD-50 Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-RD-50 SketchUp Model (.skp) SketchUp model · 1.4 MB · updated 18 May 2020
Flare-RD-50 Revit / BIM Model (.rfa) Revit family · 9.2 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-RD-50 Framing Guide - wood (.pdf) PDF document · 1.7 MB · updated 4 Oct 2024
Flare-RD-50 Framing Guide - metal (.pdf) PDF document · 1.2 MB · updated 28 Oct 2025

Flare-ST-50-EH

Ordering SKU DVST50E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 52 1/2" · Viewing Window Width 47 15/16" · Viewing Window Height 30" · Full Height Minus Legs 42 1/8" · Vent Adapter Size 5"x8"

Flare-ST-50-EH CAD Drawing (.dwg) AutoCAD drawing · 634 KB · updated 17 Jun 2020
Flare-ST-50-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-50-EH Dimension Drawing (.pdf) PDF document · 93 KB · updated 15 Jul 2019
Flare-ST-50-EH Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-ST-50-EH SketchUp Model (.skp) SketchUp model · 3.1 MB · updated 1 Apr 2020
Flare-ST-50-EH Revit / BIM Model (.rfa) Revit family · 10.1 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-50-EH Framing Guide - wood (.pdf) PDF document · 1.3 MB · updated 24 Feb 2026
Flare-ST-50-EH Framing Guide - metal (.pdf) PDF document · 1.4 MB · updated 24 Feb 2026

Flare-ST-50-H

Ordering SKU DVST50H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 52 1/2" · Viewing Window Width 47 15/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5"x8"

Flare-ST-50-H CAD Drawing (.dwg) AutoCAD drawing · 631 KB · updated 17 Jul 2019
Flare-ST-50-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-50-H Dimension Drawing (.pdf) PDF document · 92 KB · updated 15 Jul 2019
Flare-ST-50-H Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-ST-50-H SketchUp Model (.skp) SketchUp model · 3.1 MB · updated 1 Apr 2020
Flare-ST-50-H Revit / BIM Model (.rfa) Revit family · 10.1 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-50-H Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Oct 2024
Flare-ST-50-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-ST-50

Ordering SKU DVST50R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 47,000 BTU/h max · Liquid propane 35,200 BTU/h max

Full Width 52 1/2" · Viewing Window Width 47 15/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5"x8"

Flare-ST-50 CAD Drawing (.dwg) AutoCAD drawing · 634 KB · updated 17 Jul 2019
Flare-ST-50 Three-Part Specification (.docx) Word document · 115 KB · updated 2 Sep 2026
Flare-ST-50 Dimension Drawing (.pdf) PDF document · 93 KB · updated 15 Jul 2019
Flare-ST-50 Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-ST-50 SketchUp Model (.skp) SketchUp model · 3.2 MB · updated 1 Apr 2020
Flare-ST-50 Revit / BIM Model (.rfa) Revit family · 10.3 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-50 Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Nov 2024
Flare-ST-50 Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-DC-60-EH

Ordering SKU DVDC60E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 60 1/8" · Viewing Window Width 59 15/16" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5"x8"

Flare-DC-60-EH CAD Drawing (.dwg) AutoCAD drawing · 641 KB · updated 27 Jul 2023
Flare-DC-60-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-60-EH Dimension Drawing (.pdf) PDF document · 103 KB · updated 6 Sep 2023
Flare-DC-60-EH Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-DC-60-EH SketchUp Model (.skp) SketchUp model · 11.5 MB · updated 2 Apr 2025
Flare-DC-60-EH Revit / BIM Model (.rfa) Revit family · 30.9 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-DC-60-EH Framing Guide - wood (.pdf) PDF document · 1.4 MB · updated 4 Oct 2024
Flare-DC-60-EH Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-DC-60-H

Ordering SKU DVDC60H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 60 1/8" · Viewing Window Width 59 15/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5"x8"

Flare-DC-60-H CAD Drawing (.dwg) AutoCAD drawing · 493 KB · updated 24 Aug 2020
Flare-DC-60-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-60-H Dimension Drawing (.pdf) PDF document · 234 KB · updated 20 Aug 2019
Flare-DC-60-H Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-DC-60-H SketchUp Model (.skp) SketchUp model · 1.8 MB · updated 13 May 2020
Flare-DC-60-H Revit / BIM Model (.rfa) Revit family · 9.2 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-DC-60-H Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-DC-60-H Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-DC-60

Ordering SKU DVDC60R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 60 1/8" · Viewing Window Width 59 15/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5"x8"

Flare-DC-60 CAD Drawing (.dwg) AutoCAD drawing · 496 KB · updated 24 Aug 2020
Flare-DC-60 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-60 Dimension Drawing (.pdf) PDF document · 234 KB · updated 20 Aug 2019
Flare-DC-60 Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-DC-60 SketchUp Model (.skp) SketchUp model · 603 KB · updated 2 Sep 2026
Flare-DC-60 Revit / BIM Model (.rfa) Revit family · 736 KB · updated 23 Sep 2020 · Revit version not recorded
Flare-DC-60 Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-DC-60 Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-FF-60-EH

Ordering SKU DVFF60E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 62 1/8" · Viewing Window Width 57 13/16" · Viewing Window Height 30" · Full Height Minus Legs 42 1/8" · Vent Adapter Size 5x8"

Flare-FF-60-EH CAD Drawing (.dwg) AutoCAD drawing · 625 KB · updated 12 Jul 2019
Flare-FF-60-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-FF-60-EH Dimension Drawing (.pdf) PDF document · 82 KB · updated 12 Jul 2019
Flare-FF-60-EH Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-FF-60-EH SketchUp Model (.skp) SketchUp model · 2.9 MB · updated 1 Apr 2020
Flare-FF-60-EH Revit / BIM Model (.rfa) Revit family · 10.1 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-FF-60-EH Framing Guide - wood (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026
Flare-FF-60-EH Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026

Flare-FF-60-H

Ordering SKU DVFF60H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 62 1/8" · Viewing Window Width 57 13/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8"

Flare-FF-60-H CAD Drawing (.dwg) AutoCAD drawing · 622 KB · updated 12 Jul 2019
Flare-FF-60-H Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-FF-60-H Dimension Drawing (.pdf) PDF document · 85 KB · updated 12 Jul 2019
Flare-FF-60-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-FF-60-H SketchUp Model (.skp) SketchUp model · 3 MB · updated 1 Apr 2020
Flare-FF-60-H Revit / BIM Model (.rfa) Revit family · 4.9 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-FF-60-H Framing Guide - wood (.pdf) PDF document · 1.7 MB · updated 4 Oct 2024
Flare-FF-60-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-FF-60

Ordering SKU DVFF60R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 62 1/8" · Viewing Window Width 57 13/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8"

Flare-FF-60 CAD Drawing (.dwg) AutoCAD drawing · 626 KB · updated 12 Jul 2019
Flare-FF-60 Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-FF-60 Dimension Drawing (.pdf) PDF document · 88 KB · updated 12 Jul 2019
Flare-FF-60 Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-FF-60 SketchUp Model (.skp) SketchUp model · 3.2 MB · updated 1 Apr 2020
Flare-FF-60 Revit / BIM Model (.rfa) Revit family · 2.7 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-FF-60 Framing Guide - wood (.pdf) PDF document · 1.5 MB · updated 4 Oct 2024
Flare-FF-60 Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-LC-60-EH

Ordering SKU DVLC60E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 60 1/16" · Viewing Window Width 57 5/8" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5x8

Flare-LC-60-EH CAD Drawing (.dwg) AutoCAD drawing · 645 KB · updated 27 Jul 2023
Flare-LC-60-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-60-EH Dimension Drawing (.pdf) PDF document · 101 KB · updated 27 Jul 2023
Flare-LC-60-EH Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-LC-60-EH SketchUp Model (.skp) SketchUp model · 11.6 MB · updated 2 Apr 2025
Flare-LC-60-EH Revit / BIM Model (.rfa) Revit family · 30.9 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-LC-60-EH Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-60-EH Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-LC-60-H

Ordering SKU DVLC60H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 60 1/16" · Viewing Window Width 57 5/8" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8

Flare-LC-60-H CAD Drawing (.dwg) AutoCAD drawing · 502 KB · updated 24 Aug 2020
Flare-LC-60-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-60-H Dimension Drawing (.pdf) PDF document · 227 KB · updated 20 Aug 2019
Flare-LC-60-H Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-LC-60-H SketchUp Model (.skp) SketchUp model · 1.5 MB · updated 13 May 2020
Flare-LC-60-H Revit / BIM Model (.rfa) Revit family · 9.2 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-LC-60-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-60-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-LC-60

Ordering SKU DVLC60R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 60 1/16" · Viewing Window Width 57 5/8" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8

Flare-LC-60 CAD Drawing (.dwg) AutoCAD drawing · 504 KB · updated 24 Aug 2020
Flare-LC-60 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-60 Dimension Drawing (.pdf) PDF document · 232 KB · updated 20 Aug 2019
Flare-LC-60 Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-LC-60 SketchUp Model (.skp) SketchUp model · 1.5 MB · updated 13 May 2020
Flare-LC-60 Revit / BIM Model (.rfa) Revit family · 9.2 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-LC-60 Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-60 Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-60-EH

Ordering SKU DVRC60E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 60 1/16" · Viewing Window Width 57 5/8" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5x8"

Flare-RC-60-EH CAD Drawing (.dwg) AutoCAD drawing · 586 KB · updated 27 Jul 2023
Flare-RC-60-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-60-EH Dimension Drawing (.pdf) PDF document · 89 KB · updated 27 Jul 2023
Flare-RC-60-EH Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-RC-60-EH SketchUp Model (.skp) SketchUp model · 11.7 MB · updated 2 Apr 2025
Flare-RC-60-EH Revit / BIM Model (.rfa) Revit family · 31.1 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-RC-60-EH Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-60-EH Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-60-H

Ordering SKU DVRC60H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 60 1/16" · Viewing Window Width 57 5/8" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8"

Flare-RC-60-H CAD Drawing (.dwg) AutoCAD drawing · 477 KB · updated 24 Aug 2020
Flare-RC-60-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-60-H Dimension Drawing (.pdf) PDF document · 221 KB · updated 20 Aug 2019
Flare-RC-60-H Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-RC-60-H SketchUp Model (.skp) SketchUp model · 1.5 MB · updated 13 May 2020
Flare-RC-60-H Revit / BIM Model (.rfa) Revit family · 9.2 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RC-60-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-60-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-60

Ordering SKU DVRC60R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 60 1/16" · Viewing Window Width 57 5/8" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8"

Flare-RC-60 CAD Drawing (.dwg) AutoCAD drawing · 506 KB · updated 24 Aug 2020
Flare-RC-60 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-60 Dimension Drawing (.pdf) PDF document · 233 KB · updated 20 Aug 2019
Flare-RC-60 Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-RC-60 SketchUp Model (.skp) SketchUp model · 1.5 MB · updated 13 May 2020
Flare-RC-60 Revit / BIM Model (.rfa) Revit family · 9.2 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-RC-60 Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-60 Framing Guide - metal (.pdf) PDF document · 1021 KB · updated 28 Oct 2025

Flare-RD-60-EH

Ordering SKU DVRD60E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 62 13/16" · Viewing Window Width 57 9/16" · Viewing Window Height 30" · Full Height Minus Legs 42 7/8" · Vent Adapter Size 5x8

Flare-RD-60-EH CAD Drawing (.dwg) AutoCAD drawing · 627 KB · updated 25 Jul 2019
Flare-RD-60-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-60-EH Dimension Drawing (.pdf) PDF document · 90 KB · updated 25 Jul 2019
Flare-RD-60-EH Product Sheet (.pdf) PDF document · 227 KB · updated 21 Oct 2025
Flare-RD-60-EH SketchUp Model (.skp) SketchUp model · 1.5 MB · updated 18 May 2020
Flare-RD-60-EH Revit / BIM Model (.rfa) Revit family · 9.3 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RD-60-EH Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-RD-60-EH Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-RD-60-H

Ordering SKU DVRD60H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 62 13/16" · Viewing Window Width 57 9/16" · Viewing Window Height 24" · Full Height Minus Legs 36 5/8" · Vent Adapter Size 5x8

Flare-RD-60-H CAD Drawing (.dwg) AutoCAD drawing · 627 KB · updated 25 Jul 2019
Flare-RD-60-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-60-H Dimension Drawing (.pdf) PDF document · 90 KB · updated 25 Jul 2019
Flare-RD-60-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-RD-60-H SketchUp Model (.skp) SketchUp model · 1.6 MB · updated 18 May 2020
Flare-RD-60-H Revit / BIM Model (.rfa) Revit family · 9.4 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RD-60-H Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-RD-60-H Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-RD-60

Ordering SKU DVRD60R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 62 13/16" · Viewing Window Width 57 9/16" · Viewing Window Height 16" · Full Height Minus Legs 28 3/4" · Vent Adapter Size 5x8

Flare-RD-60 CAD Drawing (.dwg) AutoCAD drawing · 631 KB · updated 25 Jul 2019
Flare-RD-60 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-60 Dimension Drawing (.pdf) PDF document · 91 KB · updated 25 Jul 2019
Flare-RD-60 Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-RD-60 SketchUp Model (.skp) SketchUp model · 1.6 MB · updated 18 May 2020
Flare-RD-60 Revit / BIM Model (.rfa) Revit family · 9.4 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-RD-60 Framing Guide - wood (.pdf) PDF document · 1.7 MB · updated 4 Oct 2024
Flare-RD-60 Framing Guide - metal (.pdf) PDF document · 1.2 MB · updated 28 Oct 2025

Flare-ST-60-EH

Ordering SKU DVST60E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 62 5/16" · Viewing Window Width 57 13/16" · Viewing Window Height 30" · Full Height Minus Legs 42 1/8" · Vent Adapter Size 5"x8"

Flare-ST-60-EH CAD Drawing (.dwg) AutoCAD drawing · 630 KB · updated 17 Jul 2019
Flare-ST-60-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-60-EH Dimension Drawing (.pdf) PDF document · 90 KB · updated 15 Jul 2019
Flare-ST-60-EH Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-ST-60-EH SketchUp Model (.skp) SketchUp model · 2.9 MB · updated 1 Apr 2020
Flare-ST-60-EH Revit / BIM Model (.rfa) Revit family · 10.1 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-60-EH Framing Guide - wood (.pdf) PDF document · 1.3 MB · updated 24 Feb 2026
Flare-ST-60-EH Framing Guide - metal (.pdf) PDF document · 1.4 MB · updated 24 Feb 2026

Flare-ST-60-H

Ordering SKU DVST60H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 62 5/16" · Viewing Window Width 57 13/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5"x8"

Flare-ST-60-H CAD Drawing (.dwg) AutoCAD drawing · 628 KB · updated 17 Jul 2019
Flare-ST-60-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-60-H Dimension Drawing (.pdf) PDF document · 177 KB · updated 16 Jul 2019
Flare-ST-60-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-ST-60-H SketchUp Model (.skp) SketchUp model · 3.2 MB · updated 1 Apr 2020
Flare-ST-60-H Revit / BIM Model (.rfa) Revit family · 10.3 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-60-H Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Oct 2024
Flare-ST-60-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-ST-60

Ordering SKU DVST60R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 51,000 BTU/h max · Liquid propane 43,000 BTU/h max

Full Width 62 5/16" · Viewing Window Width 57 13/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5"x8"

Flare-ST-60 CAD Drawing (.dwg) AutoCAD drawing · 642 KB · updated 16 Sep 2019
Flare-ST-60 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-60 Dimension Drawing (.pdf) PDF document · 156 KB · updated 15 Jul 2019
Flare-ST-60 Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-ST-60 SketchUp Model (.skp) SketchUp model · 3.2 MB · updated 1 Apr 2020
Flare-ST-60 Revit / BIM Model (.rfa) Revit family · 10.2 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-60 Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Nov 2024
Flare-ST-60 Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-DC-70-EH

Ordering SKU DVDC70E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 69 15/16" · Viewing Window Width 69 13/16" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5"x8"

Flare-DC-70-EH CAD Drawing (.dwg) AutoCAD drawing · 712 KB · updated 27 Jul 2023
Flare-DC-70-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-70-EH Dimension Drawing (.pdf) PDF document · 115 KB · updated 6 Sep 2023
Flare-DC-70-EH Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-DC-70-EH SketchUp Model (.skp) SketchUp model · 12.9 MB · updated 2 Apr 2025
Flare-DC-70-EH Revit / BIM Model (.rfa) Revit family · 32.1 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-DC-70-EH Framing Guide - wood (.pdf) PDF document · 1.4 MB · updated 4 Oct 2024
Flare-DC-70-EH Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-DC-70-H

Ordering SKU DVDC70H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 69 15/16" · Viewing Window Width 69 13/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5"x8"

Flare-DC-70-H CAD Drawing (.dwg) AutoCAD drawing · 495 KB · updated 24 Aug 2020
Flare-DC-70-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-70-H Dimension Drawing (.pdf) PDF document · 151 KB · updated 20 Aug 2019
Flare-DC-70-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-DC-70-H SketchUp Model (.skp) SketchUp model · 2 MB · updated 13 May 2020
Flare-DC-70-H Revit / BIM Model (.rfa) Revit family · 9.4 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-DC-70-H Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-DC-70-H Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-DC-70

Ordering SKU DVDC70R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 69 15/16" · Viewing Window Width 69 13/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5"x8"

Flare-DC-70 CAD Drawing (.dwg) AutoCAD drawing · 513 KB · updated 24 Aug 2020
Flare-DC-70 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-70 Dimension Drawing (.pdf) PDF document · 152 KB · updated 20 Aug 2019
Flare-DC-70 Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-DC-70 SketchUp Model (.skp) SketchUp model · 655 KB · updated 2 Sep 2026
Flare-DC-70 Revit / BIM Model (.rfa) Revit family · 9.4 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-DC-70 Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-DC-70 Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-FF-70-EH

Ordering SKU DVFF70E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 72 3/16" · Viewing Window Width 67 5/8" · Viewing Window Height 30" · Full Height Minus Legs 42 1/8" · Vent Adapter Size 5x8"

Flare-FF-70-EH CAD Drawing (.dwg) AutoCAD drawing · 626 KB · updated 12 Jul 2019
Flare-FF-70-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-FF-70-EH Dimension Drawing (.pdf) PDF document · 182 KB · updated 16 Jun 2021
Flare-FF-70-EH Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-FF-70-EH SketchUp Model (.skp) SketchUp model · 6.1 MB · updated 1 Apr 2020
Flare-FF-70-EH Revit / BIM Model (.rfa) Revit family · 10.1 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-FF-70-EH Framing Guide - wood (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026
Flare-FF-70-EH Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026

Flare-FF-70-H

Ordering SKU DVFF70H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 72 3/16" · Viewing Window Width 67 5/8" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8"

Flare-FF-70-H CAD Drawing (.dwg) AutoCAD drawing · 627 KB · updated 12 Jul 2019
Flare-FF-70-H Three-Part Specification (.docx) Word document · 115 KB · updated 2 Sep 2026
Flare-FF-70-H Dimension Drawing (.pdf) PDF document · 336 KB · updated 29 Sep 2025
Flare-FF-70-H Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-FF-70-H SketchUp Model (.skp) SketchUp model · 3 MB · updated 1 Apr 2020
Flare-FF-70-H Revit / BIM Model (.rfa) Revit family · 10.2 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-FF-70-H Framing Guide - wood (.pdf) PDF document · 1.7 MB · updated 4 Oct 2024
Flare-FF-70-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-FF-70

Ordering SKU DVFF70R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 72 3/16" · Viewing Window Width 67 5/8" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8"

Flare-FF-70 CAD Drawing (.dwg) AutoCAD drawing · 622 KB · updated 12 Jul 2019
Flare-FF-70 Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-FF-70 Dimension Drawing (.pdf) PDF document · 321 KB · updated 29 Sep 2025
Flare-FF-70 Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-FF-70 SketchUp Model (.skp) SketchUp model · 3 MB · updated 1 Apr 2020
Flare-FF-70 Revit / BIM Model (.rfa) Revit family · 4.5 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-FF-70 Framing Guide - wood (.pdf) PDF document · 1.5 MB · updated 4 Oct 2024
Flare-FF-70 Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-LC-70-EH

Ordering SKU DVLC70E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 69 7/8" · Viewing Window Width 67 1/2" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5x8

Flare-LC-70-EH CAD Drawing (.dwg) AutoCAD drawing · 715 KB · updated 27 Jul 2023
Flare-LC-70-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-70-EH Dimension Drawing (.pdf) PDF document · 114 KB · updated 27 Jul 2023
Flare-LC-70-EH Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-LC-70-EH SketchUp Model (.skp) SketchUp model · 12.7 MB · updated 2 Apr 2025
Flare-LC-70-EH Revit / BIM Model (.rfa) Revit family · 32 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-LC-70-EH Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-70-EH Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-LC-70-H

Ordering SKU DVLC70H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 69 15/16" · Viewing Window Width 67 1/2" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8

Flare-LC-70-H CAD Drawing (.dwg) AutoCAD drawing · 360 KB · updated 20 Aug 2019
Flare-LC-70-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-70-H Dimension Drawing (.pdf) PDF document · 151 KB · updated 20 Aug 2019
Flare-LC-70-H Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-LC-70-H SketchUp Model (.skp) SketchUp model · 1.8 MB · updated 13 May 2020
Flare-LC-70-H Revit / BIM Model (.rfa) Revit family · 9.3 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-LC-70-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-70-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-LC-70

Ordering SKU DVLC70R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 69 15/16" · Viewing Window Width 67 1/2" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8

Flare-LC-70 CAD Drawing (.dwg) AutoCAD drawing · 361 KB · updated 20 Aug 2019
Flare-LC-70 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-70 Dimension Drawing (.pdf) PDF document · 151 KB · updated 20 Aug 2019
Flare-LC-70 Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-LC-70 SketchUp Model (.skp) SketchUp model · 2 MB · updated 13 May 2020
Flare-LC-70 Revit / BIM Model (.rfa) Revit family · 9.3 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-LC-70 Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-70 Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-70-EH

Ordering SKU DVRC70E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 69 15/16" · Viewing Window Width 67 1/2" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5x8"

Flare-RC-70-EH CAD Drawing (.dwg) AutoCAD drawing · 651 KB · updated 27 Jul 2023
Flare-RC-70-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-70-EH Dimension Drawing (.pdf) PDF document · 100 KB · updated 27 Jul 2023
Flare-RC-70-EH Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-RC-70-EH SketchUp Model (.skp) SketchUp model · 12.7 MB · updated 2 Apr 2025
Flare-RC-70-EH Revit / BIM Model (.rfa) Revit family · 31.9 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-RC-70-EH Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-70-EH Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-70-H

Ordering SKU DVRC70H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 69 15/16" · Viewing Window Width 67 1/2" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8"

Flare-RC-70-H CAD Drawing (.dwg) AutoCAD drawing · 480 KB · updated 24 Aug 2020
Flare-RC-70-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-70-H Dimension Drawing (.pdf) PDF document · 143 KB · updated 20 Aug 2019
Flare-RC-70-H Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-RC-70-H SketchUp Model (.skp) SketchUp model · 1.9 MB · updated 13 May 2020
Flare-RC-70-H Revit / BIM Model (.rfa) Revit family · 9.3 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RC-70-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-70-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-70

Ordering SKU DVRC70R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 69 15/16" · Viewing Window Width 67 1/2" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8"

Flare-RC-70 CAD Drawing (.dwg) AutoCAD drawing · 509 KB · updated 24 Aug 2020
Flare-RC-70 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-70 Dimension Drawing (.pdf) PDF document · 149 KB · updated 20 Aug 2019
Flare-RC-70 Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-RC-70 SketchUp Model (.skp) SketchUp model · 1.9 MB · updated 13 May 2020
Flare-RC-70 Revit / BIM Model (.rfa) Revit family · 9.4 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-RC-70 Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-70 Framing Guide - metal (.pdf) PDF document · 1021 KB · updated 28 Oct 2025

Flare-RD-70-EH

Ordering SKU DVRD70E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 72 11/16" · Viewing Window Width 67 3/8" · Viewing Window Height 30" · Full Height Minus Legs 42 7/8" · Vent Adapter Size 5x8

Flare-RD-70-EH CAD Drawing (.dwg) AutoCAD drawing · 625 KB · updated 25 Jul 2019
Flare-RD-70-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-70-EH Dimension Drawing (.pdf) PDF document · 90 KB · updated 25 Jul 2019
Flare-RD-70-EH Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-RD-70-EH SketchUp Model (.skp) SketchUp model · 1.8 MB · updated 18 May 2020
Flare-RD-70-EH Revit / BIM Model (.rfa) Revit family · 9.3 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RD-70-EH Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-RD-70-EH Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-RD-70-H

Ordering SKU DVRD70H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 72 11/16" · Viewing Window Width 67 3/8" · Viewing Window Height 24" · Full Height Minus Legs 36 5/8" · Vent Adapter Size 5x8

Flare-RD-70-H CAD Drawing (.dwg) AutoCAD drawing · 626 KB · updated 25 Jul 2019
Flare-RD-70-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-70-H Dimension Drawing (.pdf) PDF document · 91 KB · updated 25 Jul 2019
Flare-RD-70-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-RD-70-H SketchUp Model (.skp) SketchUp model · 1.9 MB · updated 18 May 2020
Flare-RD-70-H Revit / BIM Model (.rfa) Revit family · 9.3 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-RD-70-H Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-RD-70-H Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-RD-70

Ordering SKU DVRD70R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 72 11/16" · Viewing Window Width 67 3/8" · Viewing Window Height 16" · Full Height Minus Legs 28 3/4" · Vent Adapter Size 5x8

Flare-RD-70 CAD Drawing (.dwg) AutoCAD drawing · 625 KB · updated 25 Jul 2019
Flare-RD-70 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-70 Dimension Drawing (.pdf) PDF document · 92 KB · updated 25 Jul 2019
Flare-RD-70 Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-RD-70 SketchUp Model (.skp) SketchUp model · 1.9 MB · updated 18 May 2020
Flare-RD-70 Revit / BIM Model (.rfa) Revit family · 1.8 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-RD-70 Framing Guide - wood (.pdf) PDF document · 1.7 MB · updated 4 Oct 2024
Flare-RD-70 Framing Guide - metal (.pdf) PDF document · 1.2 MB · updated 28 Oct 2025

Flare-ST-70-EH

Ordering SKU DVST70E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 72 3/16" · Viewing Window Width 67 5/8" · Viewing Window Height 30" · Full Height Minus Legs 42 1/8" · Vent Adapter Size 5"x8"

Flare-ST-70-EH CAD Drawing (.dwg) AutoCAD drawing · 643 KB · updated 17 Jul 2019
Flare-ST-70-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-70-EH Dimension Drawing (.pdf) PDF document · 95 KB · updated 15 Jul 2019
Flare-ST-70-EH Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-ST-70-EH SketchUp Model (.skp) SketchUp model · 3.2 MB · updated 1 Apr 2020
Flare-ST-70-EH Revit / BIM Model (.rfa) Revit family · 10.2 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-70-EH Framing Guide - wood (.pdf) PDF document · 1.3 MB · updated 24 Feb 2026
Flare-ST-70-EH Framing Guide - metal (.pdf) PDF document · 1.4 MB · updated 24 Feb 2026

Flare-ST-70-H

Ordering SKU DVST70H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 72 3/16" · Viewing Window Width 67 5/8" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5"x8"

Flare-ST-70-H CAD Drawing (.dwg) AutoCAD drawing · 648 KB · updated 17 Jul 2019
Flare-ST-70-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-70-H Dimension Drawing (.pdf) PDF document · 95 KB · updated 15 Jul 2019
Flare-ST-70-H Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-ST-70-H SketchUp Model (.skp) SketchUp model · 7 MB · updated 1 Apr 2020
Flare-ST-70-H Revit / BIM Model (.rfa) Revit family · 10.4 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-70-H Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Oct 2024
Flare-ST-70-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-ST-70

Ordering SKU DVST70R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 52,200 BTU/h max · Liquid propane 45,000 BTU/h max

Full Width 72 3/16" · Viewing Window Width 67 5/8" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5"x8"

Flare-ST-70 CAD Drawing (.dwg) AutoCAD drawing · 632 KB · updated 17 Jul 2019
Flare-ST-70 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-70 Dimension Drawing (.pdf) PDF document · 93 KB · updated 15 Jul 2019
Flare-ST-70 Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-ST-70 SketchUp Model (.skp) SketchUp model · 3.3 MB · updated 1 Apr 2020
Flare-ST-70 Revit / BIM Model (.rfa) Revit family · 10.3 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-70 Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Nov 2024
Flare-ST-70 Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-DC-80-EH

Ordering SKU DVDC80E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 82 9/16" · Viewing Window Width 82 3/8" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5"x8"

Flare-DC-80-EH CAD Drawing (.dwg) AutoCAD drawing · 698 KB · updated 27 Jul 2023
Flare-DC-80-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-80-EH Dimension Drawing (.pdf) PDF document · 108 KB · updated 6 Sep 2023
Flare-DC-80-EH Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-DC-80-EH SketchUp Model (.skp) SketchUp model · 9.3 MB · updated 2 Apr 2025
Flare-DC-80-EH Revit / BIM Model (.rfa) Revit family · 27.2 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-DC-80-EH Framing Guide - wood (.pdf) PDF document · 1.4 MB · updated 4 Oct 2024
Flare-DC-80-EH Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-DC-80-H

Ordering SKU DVDC80H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 82 9/16" · Viewing Window Width 82 3/8" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5"x8"

Flare-DC-80-H CAD Drawing (.dwg) AutoCAD drawing · 512 KB · updated 24 Aug 2020
Flare-DC-80-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-80-H Dimension Drawing (.pdf) PDF document · 163 KB · updated 20 Aug 2019
Flare-DC-80-H Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-DC-80-H SketchUp Model (.skp) SketchUp model · 2.1 MB · updated 13 May 2020
Flare-DC-80-H Revit / BIM Model (.rfa) Revit family · 9.4 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-DC-80-H Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-DC-80-H Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-DC-80

Ordering SKU DVDC80R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 82 9/16" · Viewing Window Width 82 3/8" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5"x8"

Flare-DC-80 CAD Drawing (.dwg) AutoCAD drawing · 527 KB · updated 24 Aug 2020
Flare-DC-80 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-80 Dimension Drawing (.pdf) PDF document · 162 KB · updated 20 Aug 2019
Flare-DC-80 Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-DC-80 SketchUp Model (.skp) SketchUp model · 1.2 MB · updated 2 Sep 2026
Flare-DC-80 Revit / BIM Model (.rfa) Revit family · 9.4 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-DC-80 Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-DC-80 Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-FF-80-EH

Ordering SKU DVFF80E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 84 9/16" · Viewing Window Width 80 1/4" · Viewing Window Height 30" · Full Height Minus Legs 42 1/8" · Vent Adapter Size 5x8"

Flare-FF-80-EH CAD Drawing (.dwg) AutoCAD drawing · 622 KB · updated 12 Jul 2019
Flare-FF-80-EH Three-Part Specification (.docx) Word document · 115 KB · updated 2 Sep 2026
Flare-FF-80-EH Dimension Drawing (.pdf) PDF document · 90 KB · updated 12 Jul 2019
Flare-FF-80-EH Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-FF-80-EH SketchUp Model (.skp) SketchUp model · 3 MB · updated 4 May 2020
Flare-FF-80-EH Revit / BIM Model (.rfa) Revit family · 10 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-FF-80-EH Framing Guide - wood (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026
Flare-FF-80-EH Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026

Flare-FF-80-H

Ordering SKU DVFF80H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 84 9/16" · Viewing Window Width 80 1/4" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8"

Flare-FF-80-H CAD Drawing (.dwg) AutoCAD drawing · 651 KB · updated 12 Jul 2019
Flare-FF-80-H Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-FF-80-H Dimension Drawing (.pdf) PDF document · 94 KB · updated 12 Jul 2019
Flare-FF-80-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-FF-80-H SketchUp Model (.skp) SketchUp model · 3.1 MB · updated 4 May 2020
Flare-FF-80-H Revit / BIM Model (.rfa) Revit family · 10.2 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-FF-80-H Framing Guide - wood (.pdf) PDF document · 1.7 MB · updated 4 Oct 2024
Flare-FF-80-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-FF-80

Ordering SKU DVFF80R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 84 9/16" · Viewing Window Width 80 1/4" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8"

Flare-FF-80 CAD Drawing (.dwg) AutoCAD drawing · 657 KB · updated 12 Jul 2019
Flare-FF-80 Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-FF-80 Dimension Drawing (.pdf) PDF document · 96 KB · updated 12 Jul 2019
Flare-FF-80 Product Sheet (.pdf) PDF document · 227 KB · updated 21 Oct 2025
Flare-FF-80 SketchUp Model (.skp) SketchUp model · 3.2 MB · updated 4 May 2020
Flare-FF-80 Revit / BIM Model (.rfa) Revit family · 8.3 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-FF-80 Framing Guide - wood (.pdf) PDF document · 1.5 MB · updated 4 Oct 2024
Flare-FF-80 Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-LC-80-EH

Ordering SKU DVLC80E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 82 1/2" · Viewing Window Width 80 1/16" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5x8

Flare-LC-80-EH CAD Drawing (.dwg) AutoCAD drawing · 700 KB · updated 27 Jul 2023
Flare-LC-80-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-80-EH Dimension Drawing (.pdf) PDF document · 107 KB · updated 27 Jul 2023
Flare-LC-80-EH Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-LC-80-EH SketchUp Model (.skp) SketchUp model · 9.5 MB · updated 2 Apr 2025
Flare-LC-80-EH Revit / BIM Model (.rfa) Revit family · 27.3 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-LC-80-EH Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-80-EH Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-LC-80-H

Ordering SKU DVLC80H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 82 1/2" · Viewing Window Width 80 1/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8

Flare-LC-80-H CAD Drawing (.dwg) AutoCAD drawing · 529 KB · updated 24 Aug 2020
Flare-LC-80-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-80-H Dimension Drawing (.pdf) PDF document · 163 KB · updated 20 Aug 2019
Flare-LC-80-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-LC-80-H SketchUp Model (.skp) SketchUp model · 2 MB · updated 13 May 2020
Flare-LC-80-H Revit / BIM Model (.rfa) Revit family · 9.4 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-LC-80-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-80-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-LC-80

Ordering SKU DVLC80R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 82 1/2" · Viewing Window Width 80 1/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8

Flare-LC-80 CAD Drawing (.dwg) AutoCAD drawing · 559 KB · updated 24 Aug 2020
Flare-LC-80 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-80 Dimension Drawing (.pdf) PDF document · 162 KB · updated 20 Aug 2019
Flare-LC-80 Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-LC-80 SketchUp Model (.skp) SketchUp model · 2 MB · updated 13 May 2020
Flare-LC-80 Revit / BIM Model (.rfa) Revit family · 9.4 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-LC-80 Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-80 Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-80-EH

Ordering SKU DVRC80E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 82 1/2" · Viewing Window Width 80 1/16" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5x8"

Flare-RC-80-EH CAD Drawing (.dwg) AutoCAD drawing · 635 KB · updated 27 Jul 2023
Flare-RC-80-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-80-EH Dimension Drawing (.pdf) PDF document · 94 KB · updated 27 Jul 2023
Flare-RC-80-EH Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-RC-80-EH SketchUp Model (.skp) SketchUp model · 9.5 MB · updated 2 Apr 2025
Flare-RC-80-EH Revit / BIM Model (.rfa) Revit family · 27.3 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-RC-80-EH Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-80-EH Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-80-H

Ordering SKU DVRC80H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 82 1/2" · Viewing Window Width 80 1/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8"

Flare-RC-80-H CAD Drawing (.dwg) AutoCAD drawing · 496 KB · updated 24 Aug 2020
Flare-RC-80-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-80-H Dimension Drawing (.pdf) PDF document · 155 KB · updated 20 Aug 2019
Flare-RC-80-H Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-RC-80-H SketchUp Model (.skp) SketchUp model · 2 MB · updated 13 May 2020
Flare-RC-80-H Revit / BIM Model (.rfa) Revit family · 9.4 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RC-80-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-80-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-80

Ordering SKU DVRC80R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 82 1/2" · Viewing Window Width 80 1/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8"

Flare-RC-80 CAD Drawing (.dwg) AutoCAD drawing · 499 KB · updated 24 Aug 2020
Flare-RC-80 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-80 Dimension Drawing (.pdf) PDF document · 155 KB · updated 20 Aug 2019
Flare-RC-80 Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-RC-80 SketchUp Model (.skp) SketchUp model · 2 MB · updated 13 May 2020
Flare-RC-80 Revit / BIM Model (.rfa) Revit family · 18.6 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-RC-80 Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-80 Framing Guide - metal (.pdf) PDF document · 1021 KB · updated 28 Oct 2025

Flare-RD-80-EH

Ordering SKU DVRD80E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 85 1/4" · Viewing Window Width 80" · Viewing Window Height 30" · Full Height Minus Legs 42 7/8" · Vent Adapter Size 5x8

Flare-RD-80-EH CAD Drawing (.dwg) AutoCAD drawing · 629 KB · updated 25 Jul 2019
Flare-RD-80-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-80-EH Dimension Drawing (.pdf) PDF document · 86 KB · updated 25 Jul 2019
Flare-RD-80-EH Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-RD-80-EH SketchUp Model (.skp) SketchUp model · 2.8 MB · updated 18 May 2020
Flare-RD-80-EH Revit / BIM Model (.rfa) Revit family · 9.7 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RD-80-EH Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-RD-80-EH Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-RD-80-H

Ordering SKU DVRD80H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 85 1/4" · Viewing Window Width 80" · Viewing Window Height 24" · Full Height Minus Legs 36 5/8" · Vent Adapter Size 5x8

Flare-RD-80-H CAD Drawing (.dwg) AutoCAD drawing · 629 KB · updated 25 Jul 2019
Flare-RD-80-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-80-H Dimension Drawing (.pdf) PDF document · 86 KB · updated 25 Jul 2019
Flare-RD-80-H Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-RD-80-H SketchUp Model (.skp) SketchUp model · 3.2 MB · updated 18 May 2020
Flare-RD-80-H Revit / BIM Model (.rfa) Revit family · 10.2 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RD-80-H Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-RD-80-H Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-RD-80

Ordering SKU DVRD80R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 85 1/4" · Viewing Window Width 80" · Viewing Window Height 16" · Full Height Minus Legs 28 3/4" · Vent Adapter Size 5x8

Flare-RD-80 CAD Drawing (.dwg) AutoCAD drawing · 634 KB · updated 25 Jul 2019
Flare-RD-80 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-80 Dimension Drawing (.pdf) PDF document · 87 KB · updated 25 Jul 2019
Flare-RD-80 Product Sheet (.pdf) PDF document · 221 KB · updated 21 Oct 2025
Flare-RD-80 SketchUp Model (.skp) SketchUp model · 3.2 MB · updated 18 May 2020
Flare-RD-80 Revit / BIM Model (.rfa) Revit family · 10 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-RD-80 Framing Guide - wood (.pdf) PDF document · 1.7 MB · updated 4 Oct 2024
Flare-RD-80 Framing Guide - metal (.pdf) PDF document · 1.2 MB · updated 28 Oct 2025

Flare-ST-80-EH

Ordering SKU DVST80E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 84 3/4" · Viewing Window Width 80 1/4" · Viewing Window Height 30" · Full Height Minus Legs 42 1/8" · Vent Adapter Size 5"x8"

Flare-ST-80-EH CAD Drawing (.dwg) AutoCAD drawing · 654 KB · updated 17 Jul 2019
Flare-ST-80-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-80-EH Dimension Drawing (.pdf) PDF document · 96 KB · updated 15 Jul 2019
Flare-ST-80-EH Product Sheet (.pdf) PDF document · 220 KB · updated 21 Oct 2025
Flare-ST-80-EH SketchUp Model (.skp) SketchUp model · 3.3 MB · updated 4 May 2020
Flare-ST-80-EH Revit / BIM Model (.rfa) Revit family · 10.2 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-80-EH Framing Guide - wood (.pdf) PDF document · 1.3 MB · updated 24 Feb 2026
Flare-ST-80-EH Framing Guide - metal (.pdf) PDF document · 1.4 MB · updated 24 Feb 2026

Flare-ST-80-H

Ordering SKU DVST80H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 84 3/4" · Viewing Window Width 80 1/4" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5"x8"

Flare-ST-80-H CAD Drawing (.dwg) AutoCAD drawing · 666 KB · updated 17 Jul 2019
Flare-ST-80-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-80-H Dimension Drawing (.pdf) PDF document · 97 KB · updated 15 Jul 2019
Flare-ST-80-H Product Sheet (.pdf) PDF document · 219 KB · updated 21 Oct 2025
Flare-ST-80-H SketchUp Model (.skp) SketchUp model · 3.5 MB · updated 4 May 2020
Flare-ST-80-H Revit / BIM Model (.rfa) Revit family · 10.4 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-80-H Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Oct 2024
Flare-ST-80-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-ST-80

Ordering SKU DVST80R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 55,000 BTU/h max · Liquid propane 49,000 BTU/h max

Full Width 84 3/4" · Viewing Window Width 80 1/4" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5"x8"

Flare-ST-80 CAD Drawing (.dwg) AutoCAD drawing · 660 KB · updated 17 Jul 2019
Flare-ST-80 Three-Part Specification (.docx) Word document · 115 KB · updated 2 Sep 2026
Flare-ST-80 Dimension Drawing (.pdf) PDF document · 97 KB · updated 15 Jul 2019
Flare-ST-80 Product Sheet (.pdf) PDF document · 218 KB · updated 21 Oct 2025
Flare-ST-80 SketchUp Model (.skp) SketchUp model · 3.5 MB · updated 4 May 2020
Flare-ST-80 Revit / BIM Model (.rfa) Revit family · 10.3 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-80 Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Nov 2024
Flare-ST-80 Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-DC-100-EH

Ordering SKU DVDC100E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 99 1/2" · Viewing Window Width 99 5/16" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5"x8"

Flare-DC-100-EH CAD Drawing (.dwg) AutoCAD drawing · 725 KB · updated 27 Jul 2023
Flare-DC-100-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-100-EH Dimension Drawing (.pdf) PDF document · 114 KB · updated 6 Sep 2023
Flare-DC-100-EH Product Sheet (.pdf) PDF document · 215 KB · updated 19 Dec 2025
Flare-DC-100-EH SketchUp Model (.skp) SketchUp model · 13.3 MB · updated 2 Apr 2025
Flare-DC-100-EH Revit / BIM Model (.rfa) Revit family · 31.9 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-DC-100-EH Framing Guide - wood (.pdf) PDF document · 1.4 MB · updated 4 Oct 2024
Flare-DC-100-EH Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-DC-100-H

Ordering SKU DVDC100H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 99 1/2" · Viewing Window Width 99 5/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5"x8"

Flare-DC-100-H CAD Drawing (.dwg) AutoCAD drawing · 548 KB · updated 24 Aug 2020
Flare-DC-100-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-100-H Dimension Drawing (.pdf) PDF document · 171 KB · updated 20 Aug 2019
Flare-DC-100-H Product Sheet (.pdf) PDF document · 213 KB · updated 19 Dec 2025
Flare-DC-100-H SketchUp Model (.skp) SketchUp model · 2.3 MB · updated 13 May 2020
Flare-DC-100-H Revit / BIM Model (.rfa) Revit family · 9.5 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-DC-100-H Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-DC-100-H Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-DC-100

Ordering SKU DVDC100R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 99 1/2" · Viewing Window Width 99 5/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5"x8"

Flare-DC-100 CAD Drawing (.dwg) AutoCAD drawing · 538 KB · updated 24 Aug 2020
Flare-DC-100 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-DC-100 Dimension Drawing (.pdf) PDF document · 176 KB · updated 20 Aug 2019
Flare-DC-100 Product Sheet (.pdf) PDF document · 213 KB · updated 19 Dec 2025
Flare-DC-100 SketchUp Model (.skp) SketchUp model · 1.3 MB · updated 2 Sep 2026
Flare-DC-100 Revit / BIM Model (.rfa) Revit family · 9.6 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-DC-100 Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-DC-100 Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-FF-100-EH

Ordering SKU DVFF100E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 101 1/2" · Viewing Window Width 97 3/16" · Viewing Window Height 30" · Full Height Minus Legs 42 1/8" · Vent Adapter Size 5x8"

Flare-FF-100-EH CAD Drawing (.dwg) AutoCAD drawing · 687 KB · updated 12 Jul 2019
Flare-FF-100-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-FF-100-EH Dimension Drawing (.pdf) PDF document · 102 KB · updated 12 Jul 2019
Flare-FF-100-EH Product Sheet (.pdf) PDF document · 215 KB · updated 18 Dec 2025
Flare-FF-100-EH SketchUp Model (.skp) SketchUp model · 4 MB · updated 7 May 2020
Flare-FF-100-EH Revit / BIM Model (.rfa) Revit family · 10.7 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-FF-100-EH Framing Guide - wood (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026
Flare-FF-100-EH Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 6 Jan 2026

Flare-FF-100-H

Ordering SKU DVFF100H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 101 1/2" · Viewing Window Width 97 3/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8"

Flare-FF-100-H CAD Drawing (.dwg) AutoCAD drawing · 690 KB · updated 12 Jul 2019
Flare-FF-100-H Three-Part Specification (.docx) Word document · 114 KB · updated 2 Sep 2026
Flare-FF-100-H Dimension Drawing (.pdf) PDF document · 99 KB · updated 12 Jul 2019
Flare-FF-100-H Product Sheet (.pdf) PDF document · 213 KB · updated 18 Dec 2025
Flare-FF-100-H SketchUp Model (.skp) SketchUp model · 4.1 MB · updated 7 May 2020
Flare-FF-100-H Revit / BIM Model (.rfa) Revit family · 10.8 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-FF-100-H Framing Guide - wood (.pdf) PDF document · 1.7 MB · updated 4 Oct 2024
Flare-FF-100-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-FF-100

Ordering SKU DVFF100R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 101 1/2" · Viewing Window Width 97 3/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8"

Flare-FF-100 CAD Drawing (.dwg) AutoCAD drawing · 683 KB · updated 12 Jul 2019
Flare-FF-100 Three-Part Specification (.docx) Word document · 115 KB · updated 2 Sep 2026
Flare-FF-100 Dimension Drawing (.pdf) PDF document · 99 KB · updated 12 Jul 2019
Flare-FF-100 Product Sheet (.pdf) PDF document · 213 KB · updated 18 Dec 2025
Flare-FF-100 SketchUp Model (.skp) SketchUp model · 4.2 MB · updated 7 May 2020
Flare-FF-100 Revit / BIM Model (.rfa) Revit family · 1.3 MB · updated 23 Sep 2020 · Revit version not recorded
Flare-FF-100 Framing Guide - wood (.pdf) PDF document · 1.5 MB · updated 4 Oct 2024
Flare-FF-100 Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-LC-100-EH

Ordering SKU DVLC100E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 99 7/16" · Viewing Window Width 97" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5x8

Flare-LC-100-EH CAD Drawing (.dwg) AutoCAD drawing · 727 KB · updated 27 Jul 2023
Flare-LC-100-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-100-EH Dimension Drawing (.pdf) PDF document · 113 KB · updated 27 Jul 2023
Flare-LC-100-EH Product Sheet (.pdf) PDF document · 213 KB · updated 19 Dec 2025
Flare-LC-100-EH SketchUp Model (.skp) SketchUp model · 13.7 MB · updated 2 Apr 2025
Flare-LC-100-EH Revit / BIM Model (.rfa) Revit family · 32.4 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-LC-100-EH Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-100-EH Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-LC-100-H

Ordering SKU DVLC100H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 99 7/16" · Viewing Window Width 97" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8

Flare-LC-100-H CAD Drawing (.dwg) AutoCAD drawing · 545 KB · updated 24 Aug 2020
Flare-LC-100-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-100-H Dimension Drawing (.pdf) PDF document · 173 KB · updated 20 Aug 2019
Flare-LC-100-H Product Sheet (.pdf) PDF document · 213 KB · updated 19 Dec 2025
Flare-LC-100-H SketchUp Model (.skp) SketchUp model · 2.3 MB · updated 13 May 2020
Flare-LC-100-H Revit / BIM Model (.rfa) Revit family · 9.5 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-LC-100-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-100-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-LC-100

Ordering SKU DVLC100R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 99 7/16" · Viewing Window Width 97" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8

Flare-LC-100 CAD Drawing (.dwg) AutoCAD drawing · 550 KB · updated 24 Aug 2020
Flare-LC-100 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-LC-100 Dimension Drawing (.pdf) PDF document · 177 KB · updated 20 Aug 2019
Flare-LC-100 Product Sheet (.pdf) PDF document · 213 KB · updated 19 Dec 2025
Flare-LC-100 SketchUp Model (.skp) SketchUp model · 2.4 MB · updated 13 May 2020
Flare-LC-100 Revit / BIM Model (.rfa) Revit family · 23.4 MB · updated 8 Dec 2020 · Revit version not recorded
Flare-LC-100 Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-LC-100 Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-100-EH

Ordering SKU DVRC100E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 99 7/16" · Viewing Window Width 97" · Viewing Window Height 30" · Full Height Minus Legs 42 3/16" · Vent Adapter Size 5x8"

Flare-RC-100-EH CAD Drawing (.dwg) AutoCAD drawing · 661 KB · updated 27 Jul 2023
Flare-RC-100-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-100-EH Dimension Drawing (.pdf) PDF document · 100 KB · updated 27 Jul 2023
Flare-RC-100-EH Product Sheet (.pdf) PDF document · 213 KB · updated 19 Dec 2025
Flare-RC-100-EH SketchUp Model (.skp) SketchUp model · 13.7 MB · updated 2 Apr 2025
Flare-RC-100-EH Revit / BIM Model (.rfa) Revit family · 32.4 MB · updated 2 Apr 2025 · Revit version not recorded
Flare-RC-100-EH Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-100-EH Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-100-H

Ordering SKU DVRC100H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 99 7/16" · Viewing Window Width 97" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5x8"

Flare-RC-100-H CAD Drawing (.dwg) AutoCAD drawing · 1.1 MB · updated 24 Aug 2020
Flare-RC-100-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-100-H Dimension Drawing (.pdf) PDF document · 166 KB · updated 20 Aug 2019
Flare-RC-100-H Product Sheet (.pdf) PDF document · 213 KB · updated 19 Dec 2025
Flare-RC-100-H SketchUp Model (.skp) SketchUp model · 2.1 MB · updated 13 May 2020
Flare-RC-100-H Revit / BIM Model (.rfa) Revit family · 9.4 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RC-100-H Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-100-H Framing Guide - metal (.pdf) PDF document · 1 MB · updated 28 Oct 2025

Flare-RC-100

Ordering SKU DVRC100R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 99 7/16" · Viewing Window Width 97" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5x8"

Flare-RC-100 CAD Drawing (.dwg) AutoCAD drawing · 527 KB · updated 24 Aug 2020
Flare-RC-100 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RC-100 Dimension Drawing (.pdf) PDF document · 168 KB · updated 20 Aug 2019
Flare-RC-100 Product Sheet (.pdf) PDF document · 213 KB · updated 19 Dec 2025
Flare-RC-100 SketchUp Model (.skp) SketchUp model · 2.4 MB · updated 13 May 2020
Flare-RC-100 Revit / BIM Model (.rfa) Revit family · 9.6 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RC-100 Framing Guide - wood (.pdf) PDF document · 1.1 MB · updated 4 Oct 2024
Flare-RC-100 Framing Guide - metal (.pdf) PDF document · 1021 KB · updated 28 Oct 2025

Flare-RD-100-EH

Ordering SKU DVRD100E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 102 3/16" · Viewing Window Width 96 15/16" · Viewing Window Height 30" · Full Height Minus Legs 42 7/8" · Vent Adapter Size 5x8

Flare-RD-100-EH CAD Drawing (.dwg) AutoCAD drawing · 668 KB · updated 25 Jul 2019
Flare-RD-100-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-100-EH Dimension Drawing (.pdf) PDF document · 91 KB · updated 25 Jul 2019
Flare-RD-100-EH Product Sheet (.pdf) PDF document · 215 KB · updated 19 Dec 2025
Flare-RD-100-EH SketchUp Model (.skp) SketchUp model · 3.8 MB · updated 21 May 2020
Flare-RD-100-EH Revit / BIM Model (.rfa) Revit family · 10.5 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RD-100-EH Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-RD-100-EH Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-RD-100-H

Ordering SKU DVRD100H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 102 3/16" · Viewing Window Width 96 15/16" · Viewing Window Height 24" · Full Height Minus Legs 36 5/8" · Vent Adapter Size 5x8

Flare-RD-100-H CAD Drawing (.dwg) AutoCAD drawing · 668 KB · updated 25 Jul 2019
Flare-RD-100-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-100-H Dimension Drawing (.pdf) PDF document · 92 KB · updated 25 Jul 2019
Flare-RD-100-H Product Sheet (.pdf) PDF document · 213 KB · updated 19 Dec 2025
Flare-RD-100-H SketchUp Model (.skp) SketchUp model · 3.9 MB · updated 21 May 2020
Flare-RD-100-H Revit / BIM Model (.rfa) Revit family · 10.2 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RD-100-H Framing Guide - wood (.pdf) PDF document · 1.6 MB · updated 4 Oct 2024
Flare-RD-100-H Framing Guide - metal (.pdf) PDF document · 1.1 MB · updated 28 Oct 2025

Flare-RD-100

Ordering SKU DVRD100R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 102 3/16" · Viewing Window Width 96 15/16" · Viewing Window Height 16" · Full Height Minus Legs 28 3/4" · Vent Adapter Size 5x8

Flare-RD-100 CAD Drawing (.dwg) AutoCAD drawing · 667 KB · updated 25 Jul 2019
Flare-RD-100 Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-RD-100 Dimension Drawing (.pdf) PDF document · 91 KB · updated 25 Jul 2019
Flare-RD-100 Product Sheet (.pdf) PDF document · 215 KB · updated 19 Dec 2025
Flare-RD-100 SketchUp Model (.skp) SketchUp model · 3.9 MB · updated 21 May 2020
Flare-RD-100 Revit / BIM Model (.rfa) Revit family · 10.6 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-RD-100 Framing Guide - wood (.pdf) PDF document · 1.7 MB · updated 4 Oct 2024
Flare-RD-100 Framing Guide - metal (.pdf) PDF document · 1.2 MB · updated 28 Oct 2025

Flare-ST-100-EH

Ordering SKU DVST100E

30 in Extra High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 101 11/16" · Viewing Window Width 97 3/16" · Viewing Window Height 30" · Full Height Minus Legs 42 1/8" · Vent Adapter Size 5"x8"

Flare-ST-100-EH CAD Drawing (.dwg) AutoCAD drawing · 692 KB · updated 17 Jul 2019
Flare-ST-100-EH Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-100-EH Dimension Drawing (.pdf) PDF document · 105 KB · updated 15 Jul 2019
Flare-ST-100-EH Product Sheet (.pdf) PDF document · 215 KB · updated 19 Dec 2025
Flare-ST-100-EH SketchUp Model (.skp) SketchUp model · 4.6 MB · updated 7 May 2020
Flare-ST-100-EH Revit / BIM Model (.rfa) Revit family · 11 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-100-EH Framing Guide - wood (.pdf) PDF document · 1.3 MB · updated 24 Feb 2026
Flare-ST-100-EH Framing Guide - metal (.pdf) PDF document · 1.4 MB · updated 24 Feb 2026

Flare-ST-100-H

Ordering SKU DVST100H

24 in High glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 101 11/16" · Viewing Window Width 97 3/16" · Viewing Window Height 24" · Full Height Minus Legs 35 7/8" · Vent Adapter Size 5"x8"

Flare-ST-100-H CAD Drawing (.dwg) AutoCAD drawing · 718 KB · updated 16 Sep 2019
Flare-ST-100-H Three-Part Specification (.docx) Word document · 116 KB · updated 2 Sep 2026
Flare-ST-100-H Dimension Drawing (.pdf) PDF document · 104 KB · updated 16 Jul 2019
Flare-ST-100-H Product Sheet (.pdf) PDF document · 215 KB · updated 19 Dec 2025
Flare-ST-100-H SketchUp Model (.skp) SketchUp model · 4.8 MB · updated 7 May 2020
Flare-ST-100-H Revit / BIM Model (.rfa) Revit family · 11.1 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-100-H Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Oct 2024
Flare-ST-100-H Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare-ST-100

Ordering SKU DVST100R

16 in Regular glass · Direct vent · Indoor installation · 5" x 8" vent

Natural gas 60,000 BTU/h max · Liquid propane 60,000 BTU/h max

Full Width 101 11/16" · Viewing Window Width 97 3/16" · Viewing Window Height 16" · Full Height Minus Legs 28" · Vent Adapter Size 5"x8"

Flare-ST-100 CAD Drawing (.dwg) AutoCAD drawing · 690 KB · updated 17 Jul 2019
Flare-ST-100 Three-Part Specification (.docx) Word document · 115 KB · updated 2 Sep 2026
Flare-ST-100 Dimension Drawing (.pdf) PDF document · 101 KB · updated 15 Jul 2019
Flare-ST-100 Product Sheet (.pdf) PDF document · 213 KB · updated 19 Dec 2025
Flare-ST-100 SketchUp Model (.skp) SketchUp model · 5.2 MB · updated 7 May 2020
Flare-ST-100 Revit / BIM Model (.rfa) Revit family · 11.3 MB · updated 30 Sep 2020 · Revit version not recorded
Flare-ST-100 Framing Guide - wood (.pdf) PDF document · 2 MB · updated 4 Nov 2024
Flare-ST-100 Framing Guide - metal (.pdf) PDF document · 1.3 MB · updated 28 Oct 2025

Flare is a Top rated company to work with. Professional , courteous and knowledgeable staff always going that extra step! They are always able to answer any questions, help with any applications and deliver the product fast and efficiently. There products are top of the line and a pleasure to install and work with. Very proud to be able to offer the line to my clients!.

Michael Melahn, NFI certified dealer

I work at an Architecture firm and called for some technical assistance on a room-dividing unit. In the past, other companies have just answered my questions with as little detail as possible just to get off the phone. The guy who answered my phone call at Flare Fireplaces (Kyle) went above and beyond and walked me through the entire set up of the unit, toured me through different diagrams on the website so I could visually see what he had explained, and then followed up with an email with EVERYTHING I needed. I tend to ask a lot of questions, and I never once felt like he was annoyed or that he was trying to pawn me off. I never leave 'reviews', but this was such a positive experience, I had to leave one. You can tell this is a great company and the employees are very passionate about their product. I highly recommend!.

Kelli Gibson, Architecture firm
