Flare Passage See Through Or Front Fireplace – Vertical Fireplace

The contemporary gas fireplace has been reinvented with a frameless design & sharp minimalist look that allows the surrounding finishing material to come directly to the glass. This creates an opening that gives the appearance of fire hanging beautifully in your wall.
Flare’s most popular design, Now as a vertical new look.

The Passage Fireplace can be ordered as a Standard See Through Fireplace – Flare-ST-30-EH or with a solid back for a front facing presentation, vertical window and a fireplace.

All Flare Fireplaces come standard with an Invisible Mesh safety screen, but can be upgraded to include our Double Glass feature for the same protection and a much clearer view to your Flare’s flame.

Click the link provided to read more about our amazing features and what makes a Flare Fireplaces the best gas fireplace available for any project.

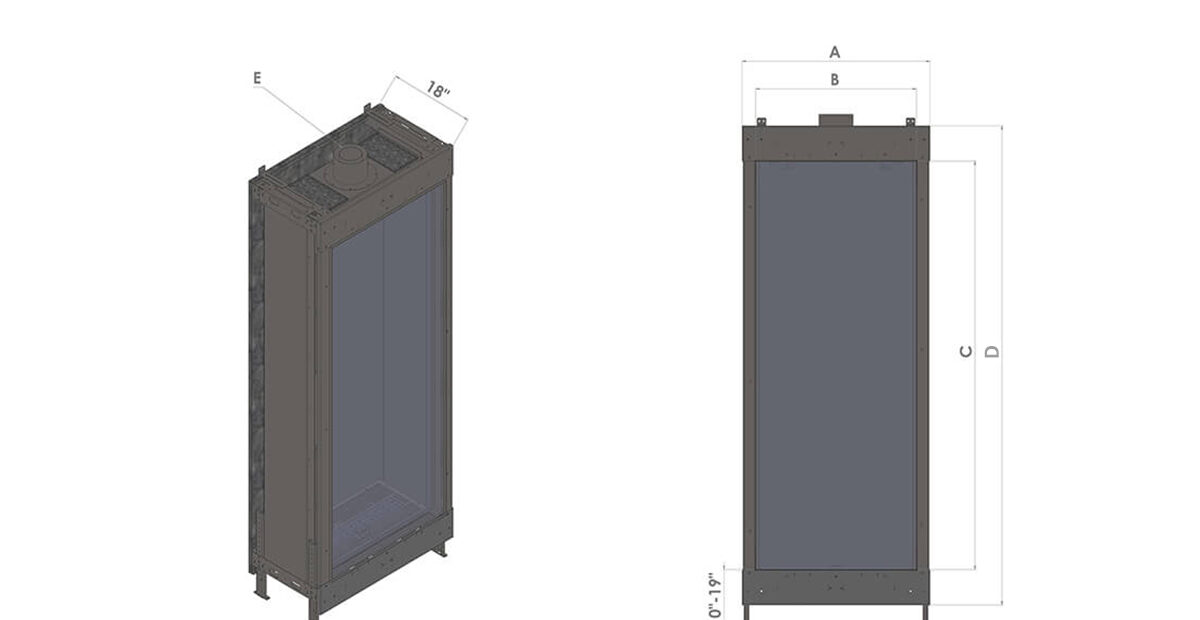

Flare Passage See fireplace diagram

Media Options

Features

AEC-DAILY

Model name – Reflects approximate unit size

C – Reflects glass height

A – Reflects full unit width

H – Reflects height of fireplace, minus 4″ legs

B – Reflects screen or glass width

E – Reflects direct-vent pipe size needed

All of our linear fireplaces are certified and approved by CSA to be installed in North America,

including in the state of California and Massachusetts.

IMPERIAL

PASSAGE MODEL NAMEABCHE
Flare-PAS-ST-30-EH302860825x8"
Flare-PAS-FF-30-EH302860825x8"

Flare Fireplaces SketchUP Files:

  • SketchUP – Passage- Flare-ST-30-EH
  • SketchUP – Passage-  Flare-FF-30-EH

Accessories CAD Files:

Media Options

Features

linear fireplace

Linear Design

The linear direct vent fireplace is designed to appear longer across your space, creating the appearance of your fireplace hanging effortlessly in your wall. The term “linear fireplace” is used to describe the long rectangular glass opening and can be specified by length and glass height.

Home automation for modern fireplace

Home Automation

The modern electronic gas valves equipped on all Flare Fireplaces enable your fireplace to be integrated into a new or pre-existing home automation system. Using signal relays brought to the fireplace, you can control your Flare using your Home Automation hub to control turning your fireplace on and off and adjust flame height.

Burner-3D

Advanced 3D Burner

Unlike a traditional pipe burner, Flare’s 3D stainless steel burners create a deeper, taller flame that extends closer to the sides of the fireplace, allowing for a more dynamic, natural look that runs almost end-to-end in your fireplace.

RGB-LEDS

Multicolor LED Lighting

The optional multicolor LED kit lights up your firebox with any color in the spectrum using the included remote. Set the color and the memory will remember your choice each time you power the unit on or off. You can also power the lights independently to use the lights regardless of if the fireplace is on.

Summer-Kit-Cap

Summer Kit Heat Control System

The optional Summer Kit is used to control the heat output of your double glass equipped Flare Fireplace. Have it dump your heat whenever the fireplace is turned on or set it to come on with a switch when you want to show off your Flare, but not the heat.

Wall-Timer

Wall Timer

Optional wall timers are available with every fireplace in either digital or analog design.

Battery-Backup

Battery Backup

Operate your screened Flare Fireplace, with no blowers, when the power goes out. Four AA batteries can keep your fireplace functioning for up to two years.

Remote-Eight-Button

Remote Control

Every residential Flare Fireplace ships standard with a user friendly remote. This remote allows you to control the flame height, thermostat, and timer functionality built into your Flare Fireplace valve system.

Power Vent

Optional Power Vent

In the rare case you need to Power Vent your Flare fireplace we have three options to fit any application. Use our optional Power Vent in application that have an extremely long vent run, or when you need to drag your run under the fireplace.

Glass-Heights

Multiple Glass Heights

Flare not only offers linear fireplaces in lengths ranging from 30″ up to 400″, but we also offer multiple glass heights.16″, 24″, and 30″ heights are available in our Front Facing, See Through, & Room Definer lineup. With 16″ and 24″ available across the entire lineup.

Double-Glass

Optional Double Glass

Flare Fireplaces offers a cooler touch Double Glass, which functions without the need of a power vent, across our entire lineup. This safety barrier is perfect when you are looking to achieve that crystal clear viewing window to your flame.

Power-Supply

Power Supply

Flare Fireplaces all ship with a power supply as part of your purchase.

Wall-Switch

Wall Switch

All residential Flare Fireplaces ship standard with a simple Wall Switch as part of the purchase.
