Heat Management

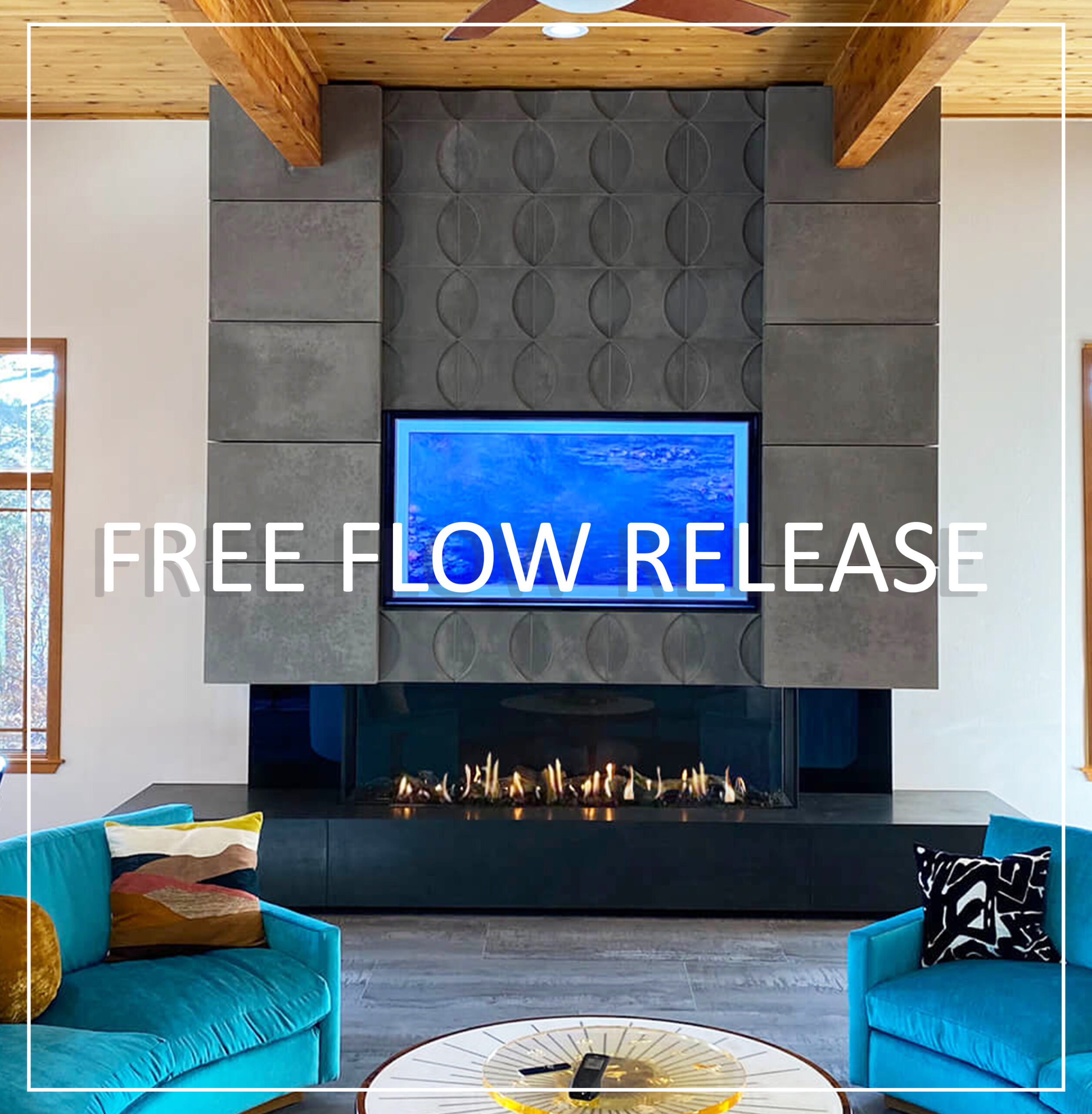

FREE FLOW

HEAT RELEASE – STANDARD

With the Free Flow system, warm air naturally circulates back into the room, providing a steady, passive flow of heat. This approach not only maintains a comfortable ambiance but also controls the temperature of the surrounding walls, ensuring they remain cool to the touch. Thanks to this design, you can confidently place a TV or artwork just 12 inches above the glass opening, regardless of the fireplace size, style, or safety barrier. Free Flow offers a seamless way to enjoy the warmth of your fireplace while preserving your space’s aesthetics.

Free Flow Install Manual

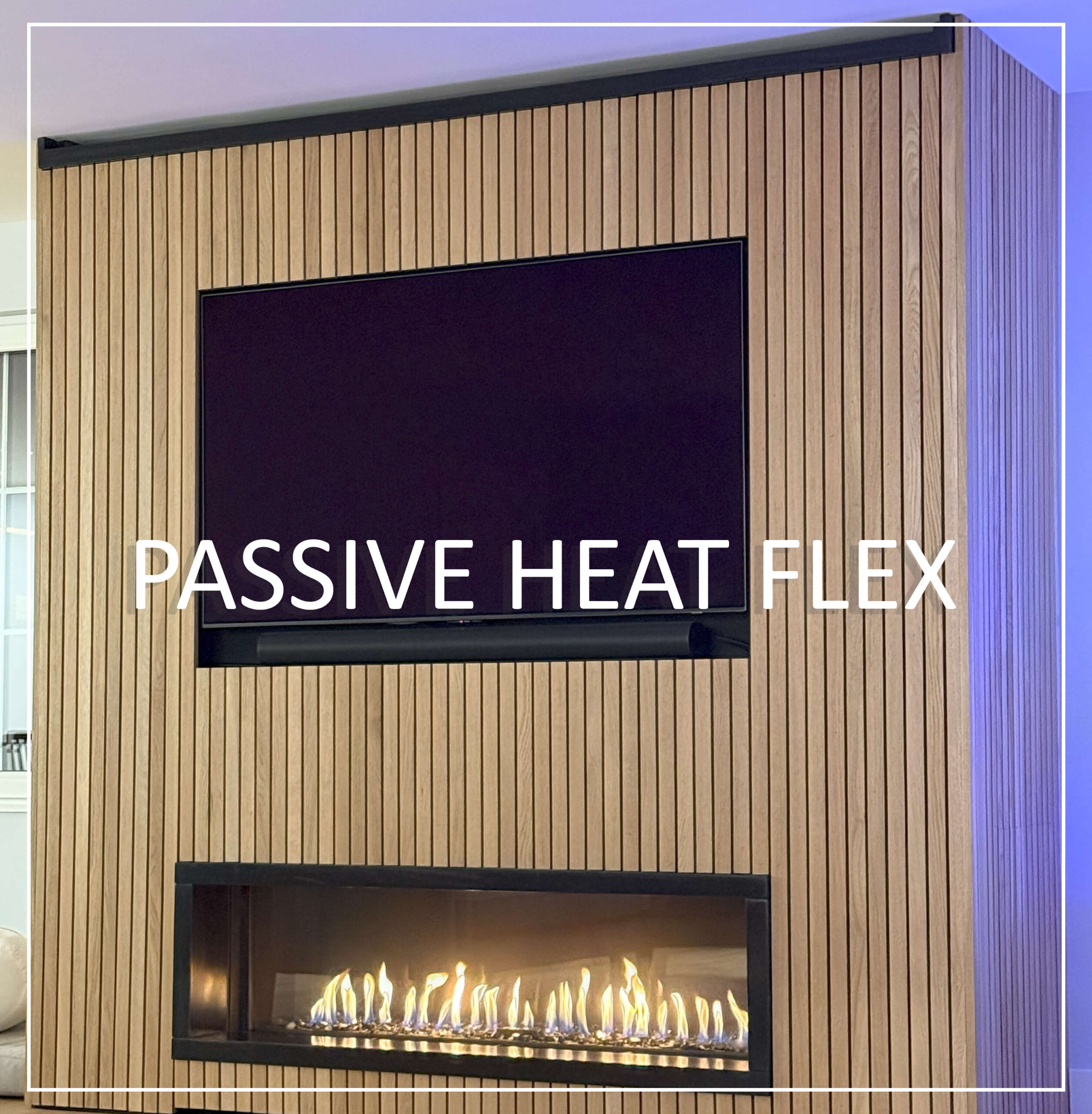

PASSIVE

HEAT FLEX

For those seeking a more controlled approach, the Heat Flex Passive system channels heat away from the fireplace using ducts connected to a standardized release. This system safely disperses warmth while allowing for uncovered wood studs around the fireplace and the ability to mount a TV or art piece 12” from the glass opening, providing flexibility in design without compromising safety. It’s an ideal option for homeowners who want to manage heat effectively without the need for complex framing solutions.

Passive Heat Flex Manual

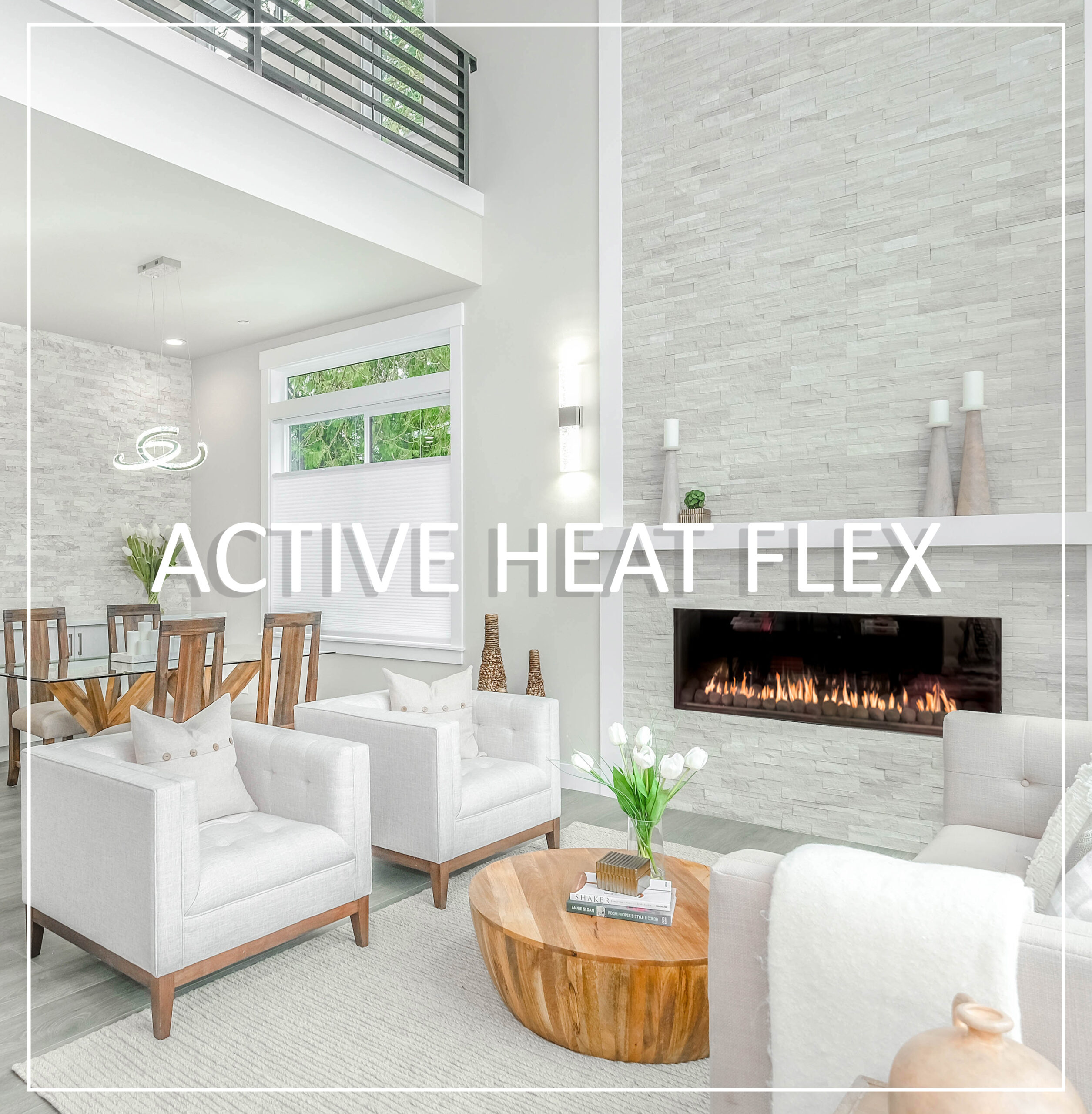

ACTIVE

HEAT FLEX

The most advanced heat management solution, Active Heat Flex, takes control to the next level by channeling heat through ducts to a monitored fan system that vents excess heat outside. This eliminates the need for a heat release while allowing you to mount a TV or art piece as close as 12” to the fireplace opening, giving you complete freedom to frame around your fireplace with uncovered wood studs. By actively managing heat output, Active Heat Flex ensures a balanced, comfortable environment while protecting nearby surfaces and electronics from excess heat.

Active Heat Flex Manual

Free Flow

Free Flow - Heat Release
Model Size	Part Name	Description	SKU
Flare 30	LUV-100	100 SQ" Open Air Flow White Louver	LUV100
Flare 45	LUV-100	100 SQ" Open Air Flow White Louver	LUV100
Flare 50	LUV-100	100 SQ" Open Air Flow White Louver	LUV100
Flare 60	LUV-140	140 SQ" Open Air Flow White Louver	LUV140
Flare 70	LUV-140	140 SQ" Open Air Flow White Louver	LUV140
Flare 80	LUV-200	200 SQ" Open Air Flow White Louver	LUV200
Flare 100	LUV-200	200 SQ" Open Air Flow White Louver	LUV200

Free Flow - Air Intake
Model Size	Part Name	Description	SKU
Flare 30	LUV-50	50 SQ" Open Air Flow White Louver	LUV50
Flare 45	LUV-50	50 SQ" Open Air Flow White Louver	LUV50
Flare 50	LUV-50	50 SQ" Open Air Flow White Louver	LUV50
Flare 60	LUV-70	70 SQ" Open Air Flow White Louver	LUV70
Flare 70	LUV-70	70 SQ" Open Air Flow White Louver	LUV70
Flare 80	LUV-100	100 SQ" Open Air Flow White Louver	LUV100
Flare 100	LUV-100	100 SQ" Open Air Flow White Louver	LUV100

Passive Heat Flex

Passive Heat Flex Kits
Model Size	Part Name	Description	Flex Quantity/Size	SKU
30	HFPK-70	Passive Heat Flex Kit for 30" Fireplace with White Louver	4 / 4"	HFPK70
45	HFPK-100	Passive Heat Flex Kit for 45" Fireplace with White Louver	4 / 4"	HFPK100
50	HFPK-100	Passive Heat Flex Kit for 50" Fireplace with White Louver	4 / 4"	HFPK100
60	HFPK-120	Passive Heat Flex Kit for 60" Fireplace with White Louver	4 / 4"	HFPK120
70	HFPK-120	Passive Heat Flex Kit for 70" Fireplace with White Louver	4 / 4"	HFPK120
80	HFPK-180	Passive Heat Flex Kit for 80" Fireplace with White Louver	6 / 6"	HFPK180
100	HFPK-180	Passive Heat Flex Kit for 100" Fireplace with White Louver	6 / 6"	HFPK180

Passive Heat Flex Box
Flare Model	Part Name	Open Air Flow [SQ"]	Flex Size	# Of Flex
Flare 30	HFB-70	70 SQ"	4"	4
Flare 45	HFB-100	100 SQ"	4"	4
Flare 50	HFB-100	100 SQ"	4"	4
Flare 60	HFB-120	120 SQ"	6"	4
Flare 70	HFB-120	120 SQ"	6"	4
Flare 80	HFB-180	180 SQ"	6"	6
Flare 100	HFB-180	180 SQ"	6"	6

Passive Heat Flex - Louvers
Flare Model	Part Name	Dimension (Inches)	Open Air Flow [SQ"]
Flare 30	LUV70	32 1/4 x 2 5/32	70"
Flare 45	LUV100	46 3/64 x 2 5/32	100"
Flare 50	LUV100	46 3/64 x 2 5/32	100"
Flare 60	LUV120	55 19/64 x 2 5/32	120"
Flare 70	LUV120	55 19/64 x 2 5/32	120"
Flare 80	LUV180	82 15/16 x 2 5/32	180"
Flare 100	LUV180	82 15/16 x 2 5/32	180"

Active Heat Flex

Heat Flex Active - Kit
Model Size	Part Name	Description	Flex Quantity/Size	SKU
30	HFAK-1	Active Heat Flex Kit for 30" Fireplace	2 / 4"	HFAK1
45	HFAK-1	Active Heat Flex Kit for 45" Fireplace	2 / 4"	HFAK1
50	HFAK-2	Active Heat Flex Kit for 50" Fireplace	2 / 4"	HFAK2
60	HFAK-2	Active Heat Flex Kit for 60" Fireplace	2 / 4"	HFAK2
70	HFAK-2	Active Heat Flex Kit for 70" Fireplace	2 / 4"	HFAK2
80	HFAK-3	Active Heat Flex Kit for 80" Fireplace	4 / 4"	HFAK3
100	HFAK-3	Active Heat Flex Kit for 100" Fireplace	4 / 4"	HFAK3

Heat Flex - Active
Flare Model	Summer Kit Quantity	Flex Size	# Of Flex
Flare 30	1	4"	2
Flare 45	1	4"	2
Flare 50	1	4"	2
Flare 60	1	4"	2
Flare 70	1	4"	2
Flare 80	2	4"	4
Flare 100	2	4"	4
