3-Sided Gas Fireplace: Double Corner (Bay)
Modern Double Corner Three-Sided Gas Fireplaces
Modern Double Corner Fireplaces are three-sided gas fireplaces: a corner bay with flame visible across three faces at once, and they can reach from one side of an architectural element to another. The multiple viewing angles and glass-to-glass paneling allow a clear line-of-sight to the flame with unit lengths of 30″ to 100″. Modern Double Corner Fireplaces create the perfect setting for any home or business.
IMPERIAL

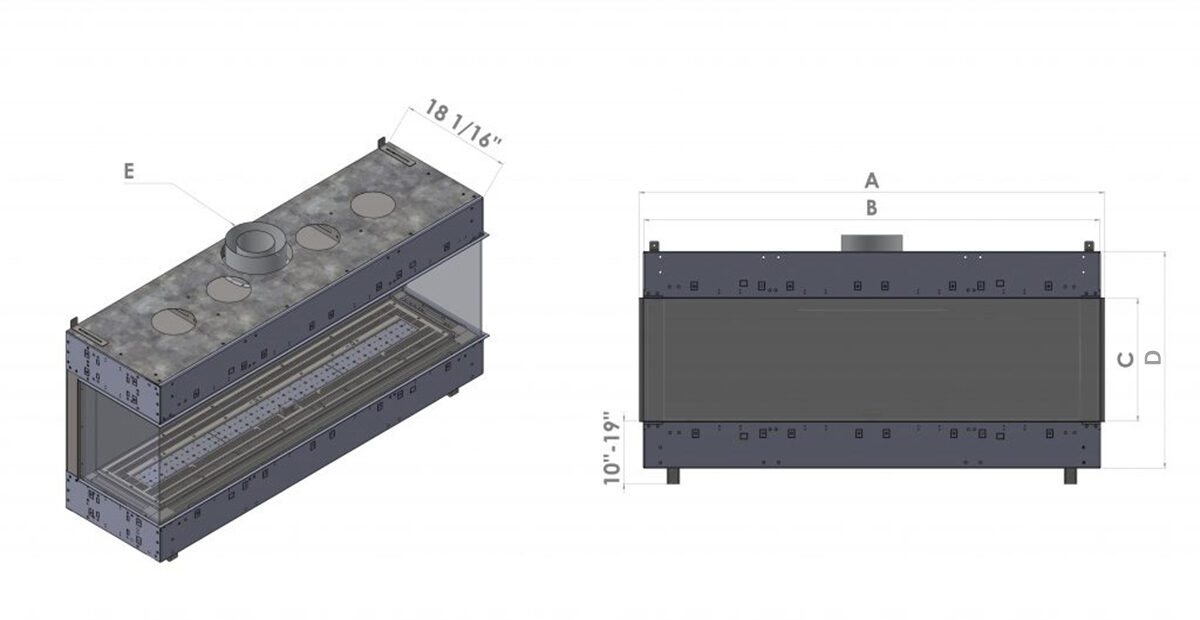

| Model Name | Full Width | Viewing Window Width | Viewing Window Height | Full Height Minus Legs | Vent Adapter Size |
|---|---|---|---|---|---|
| Flare-DC-100 | 99 8/16" | 99 5/16" | 16" | 28" | 5"x8" |
| Flare-DC-80 | 82 9/16" | 82 6/16" | 16" | 28" | 5"x8" |
| Flare-DC-70 | 69 15/16" | 69 13/16" | 16" | 28" | 5"x8" |
| Flare-DC-60 | 60 2/16" | 59 15/16" | 16" | 28" | 5"x8" |
| Flare-DC-50 | 50 4/16" | 50 2/16" | 16" | 28" | 5"x8" |
| Flare-DC-45 | 43 9/16" | 43 7/16" | 16" | 28" | 4"x6" |
| Flare-DC-30 | 30 9/16" | 30 7/16" | 24" | 35 14/16" | 4"x6" |
| Flare-DC-100-H | 99 8/16" | 99 5/16" | 24" | 35 14/16" | 5"x8" |
| Flare-DC-80-H | 82 9/16" | 82 6/16" | 24" | 35 14/16" | 5"x8" |
| Flare-DC-70-H | 69 15/16" | 69 13/16" | 24" | 35 14/16" | 5"x8" |
| Flare-DC-60-H | 60 2/16" | 59 15/16" | 24" | 35 14/16" | 5"x8" |
| Flare-DC-50-H | 50 4/16" | 50 2/16" | 24" | 35 14/16" | 5"x8" |
| Flare-DC-45-H | 43 9/16" | 43 7/16" | 24" | 35 14/16" | 4"x6" |
| Flare-DC-100-EH | 99 8/16" | 99 5/16" | 30" | 42 3/16" | 5"x8" |
| Flare-DC-80-EH | 82 9/16" | 82 6/16" | 30" | 42 3/16" | 5"x8" |
| Flare-DC-70-EH | 69 15/16" | 69 13/16" | 30" | 42 3/16" | 5"x8" |
| Flare-DC-60-EH | 60 1/8"" | 59 15/16" | 30" | 42 3/16" | 5"x8" |
| Flare-DC-50-EH | 50 1/4"" | 50 1/8"" | 30" | 42 3/16" | 5"x8" |
| Flare-DC-45-EH | 43 9/16" | 43 7/16" | 30" | 42 3/16" | 4"X6" |
3-Part Spec Sheets
16″ Regular
24″ High
30″ Extra High
Product Sheets
16″ Regular
24″ High
30″ Extra High
Dimension Files
16″ Regular
24″ High
30″ Extra High
Framing Guides
Wood Framing
Metal Framing
CAD Files
16″ Regular
24″ High
30″ Extra High
SketchUp Files
16″ Regular
24″ High
30″ Extra High
Revit Files
16″ Regular
24″ High
30″ Extra High
Flare Manuals, Parts, & More
Modern Double Corner Fireplaces are certified and approved by CSA to be installed in North America, including California and Massachusetts.
What Makes a Three-Sided Fireplace Different
A three-sided fireplace — also called a bay fireplace — carries one continuous flame across three open glass faces, so the fire reads from the front and from both sides at once. Where a flat fireplace serves a single seating area, a three-sided gas fireplace anchors an open plan: visible from the kitchen, the dining area and the main seating zone at the same time. Flare builds the Double Corner in lengths from 30″ to 100″, in three glass heights, with black diamonds, glowing embers or driftwood logs.
An open corner with nothing running through it
This is the difference that never shows up in a specification table. Every multi-sided fireplace has to resolve the open corner where two glass faces meet, and that resolution is normally a metal post or bracket — a vertical line drawn straight through the middle of the flame. The Flare Double Corner is frameless: glass meets glass at the corner, with no visible metal frame, post or bracket interrupting the view. From across the room the fire reads as one continuous body of flame wrapping the bay, rather than three separate windows set into a surround.
Cool Touch Wall, on three exposed faces
With flame open on three sides, what happens to the heat around the fireplace matters more, not less. Flare’s Cool Touch Wall keeps the wall above the fireplace relatively cool, so a television or an art piece can be mounted closer to the glass than a traditional fireplace allows, when installed according to Flare’s installation manual, heat release requirements and project-specific specifications.
Bay or peninsula?
The Double Corner is a bay: it sits into the corner of a room with the flame wrapping three faces. If the fireplace instead needs to stand free and divide the room, that is the Room Definer, Flare’s three-sided peninsula. Both are three-sided; they differ in where they sit, not in how many faces of flame you get.
Media Options
Features
Linear Design
The linear direct vent fireplace is designed to appear longer across your space, creating the appearance of your fireplace hanging effortlessly in your wall. The term “linear fireplace” is used to describe the long rectangular glass opening and can be specified by length and glass height.
Summit Burner
Designed to enhance the visual appeal of fireplaces with taller viewing windows, the optional Summit Burner elevates the flame into the vertical space using an advanced driftwood log burner.
Ceramic Black Reflective Back
All Flare Fireplaces have the option to upgrade to a black ceramic Reflective Back panel. This panel adds depth by increasing the reflection of your flame and media on the back or sides of your fireplace.
Multicolor LED Lighting
The optional multicolor LED kit lights up your firebox with any color in the spectrum using the included remote. Set the color and the memory will remember your choice each time you power the unit on or off. You can also power the lights independently to use the lights regardless of if the fireplace is on.
Optional Double Glass
Flare Fireplaces offers a quick touch Double Glass, which functions without the need of a power vent, across our entire lineup. This safety barrier is perfect when you are looking to achieve that crystal clear viewing window to your flame.
Summer Kit Heat Control
The optional Summer Kit is used to control the heat output of your cool glass or safety screen equipped Flare Fireplace. Have it dump your heat whenever the fireplace is turned on or set it to come on with a switch when you want to show off your Flare, but not the heat.
Home Automation
The modern electronic gas valves equipped on all Flare Fireplaces enable your fireplace to be integrated into a new or pre-existing home automation system. Using signal relays brought to the fireplace, you can control your Flare using your Home Automation hub to control turning your fireplace on and off.
Optional Power Vent
In the rare case you need to Power Vent your Flare fireplace we have three options to fit any application. Use our optional Power Vent in application that have an extremely long vent run, or when you need to drag your run under the fireplace.
Three-Sided Fireplace FAQs
What do you call a three-sided fireplace?
Does a three-sided fireplace have a metal frame at the open corner?
What sizes do three-sided gas fireplaces come in?
Can the finish material above a three-sided fireplace rest on the glass?
