Modern Commercial Fireplaces
Modern Commercial FireplacesEnhance any commercial space with Flare’s Modern Commercial Fireplaces, offering sleek designs that blend style with warmth. Available in eight models, these fireplaces feature glass heights of 16″, 24″, or 30″ and lengths ranging from 30″ to 100″, making them a perfect fit for lobbies, restaurants, and offices. Combining contemporary aesthetics with practical functionality, the Modern Commercial Fireplace meets the demands of high-end commercial environments.
How to Select a Commercial Fireplace
Specifying a fireplace for a hotel lobby, a restaurant or an office reception is a different exercise from choosing one for a house. The unit runs longer hours, the public can reach it, and most of these decisions are difficult to reverse once the wall is framed. Four choices shape the specification. Take them in this order.
All Flare Modern Commercial fireplaces are certified under CSA file #263124, ANSI Z21.88 / CSA 2.33, and are approved for installation across North America, including California and Massachusetts.
Working on a specification? Send us the drawings and we will confirm configuration, venting and controls before you frame – use the Quote Request form.
IMPERIAL

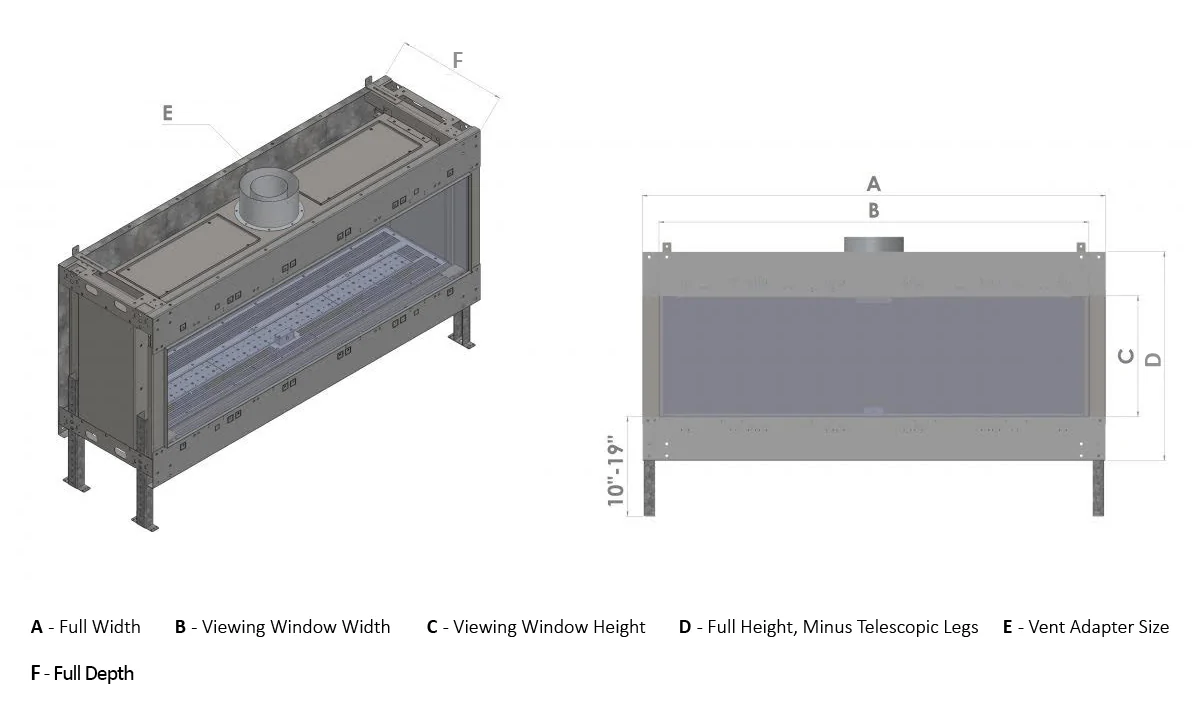

| Model Name | Full Width | Viewing Window Width | Viewing Window Height | Full Height Minus Legs | Vent Adapter Size | Depth |
|---|---|---|---|---|---|---|
| Flare-FF-45-C | 45 9/16" | 41 4/16" | 16" | 28" | 4x6" | 18 10/16" |
| Flare-FF-50-C | 52 5/16" | 47 15/16" | 16" | 28" | 5x8" | 18 10/16" |
| Flare-FF-60-C | 62 2/16" | 57 13/16" | 16" | 28" | 5x8" | 18 10/16" |
| Flare-FF-70-C | 72 3/16" | 67 10/16" | 16" | 28" | 5x8" | 18 10/16" |
| Flare-FF-80-C | 84 9/16" | 80 4/16" | 16" | 28" | 5x8" | 18 10/16" |
| Flare-FF-100-C | 101 8/16" | 97 3/16" | 16" | 28" | 5x8" | 18 10/16" |
| Flare-FF-45-H-C | 45 9/16" | 41 4/16" | 24" | 35 14/16" | 4x6" | 18 10/16" |
| Flare-FF-50-H-C | 52 5/16" | 47 15/16" | 24" | 35 14/16" | 5x8" | 18 10/16" |
| Flare-FF-60-H-C | 62 2/16" | 57 13/16" | 24" | 35 14/16" | 5x8" | 18 10/16" |
| Flare-FF-70-H-C | 72 3/16" | 67 10/16" | 24" | 35 14/16" | 5x8" | 18 10/16" |
| Flare-FF-80-H-C | 84 9/16" | 80 4/16" | 24" | 35 14/16" | 5x8" | 18 10/16" |
| Flare-FF-100-H-C | 101 8/16" | 97 3/16" | 24" | 35 14/16" | 5x8" | 18 10/16" |
| Flare-FF-45-EH-C | 45 9/16" | 41 4/16" | 30" | 41" | 4x6" | 18 10/16" |
| Flare-FF-50-EH-C | 52 5/16" | 47 15/16" | 30" | 41" | 5x8" | 18 10/16" |
| Flare-FF-60-EH-C | 62 2/16" | 57 13/16" | 30" | 41" | 5x8" | 18 10/16" |
| Flare-FF-70-EH-C | 72 3/16" | 67 10/16" | 30" | 41" | 5x8" | 18 10/16" |
| Flare-FF-80-EH-C | 84 9/16" | 80 4/16" | 30" | 41" | 5x8" | 18 10/16" |
| Flare-FF-100-EH-C | 101 8/16" | 97 3/16" | 30" | 41" | 5x8" | 18 10/16" |
IMPERIAL
| Model Name | Full Width | Viewing Window Width | Viewing Window Height | Full Height Minus Legs | Vent Adapter Size | Depth |
|---|---|---|---|---|---|---|
| Flare-ST-45-C | 45 13/16" | 41 4/16" | 16" | 28" | 4"x6" | 18 1/16" |
| Flare-ST-50-C | 52 8/16" | 47 15/16" | 16" | 28" | 5"x8" | 18 1/16" |
| Flare-ST-60-C | 62 5/16" | 57 13/16" | 16" | 28" | 5"x8" | 18 1/16" |
| Flare-ST-70-C | 72 3/16" | 67 10/16" | 16" | 28" | 5"x8" | 18 1/16" |
| Flare-ST-80-C | 84 12/16" | 80 4/16" | 16" | 28" | 5"x8" | 18 1/16" |
| Flare-ST-100-C | 101 11/16" | 97 3/16" | 16" | 28" | 5"x8" | 18 1/16" |
| Flare-ST-45-H-C | 45 13/16" | 41 4/16" | 24" | 35 14/16" | 4"x6" | 18 1/16" |
| Flare-ST-50-H-C | 52 8/16" | 47 15/16" | 24" | 35 14/16" | 5"x8" | 18 1/16" |
| Flare-ST-60-H-C | 62 5/16" | 57 13/16" | 24" | 35 14/16" | 5"x8" | 18 1/16" |
| Flare-ST-70-H-C | 72 3/16" | 67 10/16" | 24" | 35 14/16" | 5"x8" | 18 1/16" |
| Flare-ST-80-H-C | 84 12/16" | 80 4/16" | 24" | 35 14/16" | 5"x8" | 18 1/16" |
| Flare-ST-100-H-C | 101 11/16" | 97 3/16" | 24" | 35 14/16" | 5"x8" | 18 1/16" |
| Flare-ST-45-EH-C | 45 13/16" | 41 4/16" | 30" | 41" | 4"x6" | 18 1/16" |
| Flare-ST-50-EH-C | 52 8/16" | 47 15/16" | 30" | 41" | 5"x8" | 18 1/16" |
| Flare-ST-60-EH-C | 62 5/16" | 57 13/16" | 30" | 41" | 5"x8" | 18 1/16" |
| Flare-ST-70-EH-C | 72 3/16" | 67 10/16" | 30" | 41" | 5"x8" | 18 1/16" |
| Flare-ST-80-EH-C | 84 12/16" | 80 4/16" | 30" | 41" | 5"x8" | 18 1/16" |
| Flare-ST-100-EH-C | 101 11/16" | 97 3/16" | 30" | 41" | 5"x8" | 18 1/16" |
Product Sheets
Commercial Front Facing 16″ Regular
Commercial Front Facing 24″ High
Commercial Front Facing 30″ Extra High
Commercial See Through 16″ Regular
Commercial See Through 24″ High
Commercial See Through 30″ Extra High
3-Part Spec Sheets
Commercial Front Facing 16″ Regular
Commercial Front Facing 24″ High
Commercial Front Facing 30″ Extra High
Commercial See Through 16″ Regular
Commercial See Through 24″ High
Commercial See Through 30″ Extra High
Dimension Files
Commercial Front Facing 16″ Regular
Commercial Front Facing 24″ High
Commercial Front Facing 30″ Extra High
Commercial See Through 16″ Regular
Commercial See Through 24″ High
Commercial See Through 30″ Extra High
Framing Guides
Commercial Front Facing Wood Framing Guide
Commercial Front Facing Metal Framing Guide
Commercial See Through Wood Framing Guide
Commercial See Through Metal Framing Guide
CAD Files
Front 16″ Regular
Front 24″ High
Front 30″ Extra High
See Through 16″ Regular
See Through 24″ High
See Through 30″ Extra High
SketchUp Files
Front 16″ Regular
Front 24″ High
Front 30″ Extra High
See Through 16″ Regular
See Through 24″ High
See Through 30″ Extra High
Flare Manuals & Brochures
The Modern Commercial Fireplace is certified and approved by CSA to be installed in North America, including in the state of California and Massachusetts.
Media Options
Features
Linear Design
The linear direct vent fireplace is designed to appear longer across your space, creating the appearance of your fireplace hanging effortlessly in your wall. The term “linear fireplace” is used to describe the long rectangular glass opening and can be specified by length and glass height.
Advanced 3D Burner
Unlike a traditional pipe burner, Flare’s 3D stainless steel burners create a deeper, taller flame that extends closer to the sides of the fireplace, allowing for a more dynamic, natural look that runs almost end-to-end in your fireplace. Standard on all our indoor fireplaces
Summit Burner
Designed to enhance the visual appeal of fireplaces with taller viewing windows, the optional Summit Burner elevates the flame into the vertical space using an advanced driftwood log burner.
Ceramic Black Reflective Back
All Flare Fireplaces have the option to upgrade to a black ceramic Reflective Back panel. This panel adds depth by increasing the reflection of your flame and media on the back or sides of your fireplace.
Multicolor LED Lighting
The optional multicolor LED kit lights up your firebox with any color in the spectrum using the included remote. Set the color and the memory will remember your choice each time you power the unit on or off. You can also power the lights independently to use the lights regardless of if the fireplace is on.
Optional Double Glass
Flare Fireplaces offers a quick touch Double Glass, which functions without the need of a power vent, across our entire lineup. This safety barrier is perfect when you are looking to achieve that crystal clear viewing window to your flame.
Wall Switch
All residential Flare Fireplaces ship standard with a simple Wall Switch as part of the purchase.
Summer Kit Heat Control
The optional Summer Kit is used to control the heat output of your cool glass or safety screen equipped Flare Fireplace. Have it dump your heat whenever the fireplace is turned on or set it to come on with a switch when you want to show off your Flare, but not the heat.
Wall Timer
Optional analog wall timers are available with every fireplace design.
Home Automation
The modern electronic gas valves equipped on all Flare Fireplaces enable your fireplace to be integrated into a new or pre-existing home automation system. Using signal relays brought to the fireplace, you can control your Flare using your Home Automation hub to control turning your fireplace on and off.
Battery Backup
Operate your screened Flare Fireplace, with no blowers, when the power goes out. Four AA batteries can keep your fireplace functioning for up to two years.
Remote Control
Every residential Flare Fireplace ships standard with a user friendly remote. This remote allows you to control the flame height, thermostat, and timer functionality built into your Flare Fireplace valve system.
Optional Power Vent
In the rare case you need to Power Vent your Flare fireplace we have three options to fit any application. Use our optional Power Vent in application that have an extremely long vent run, or when you need to drag your run under the fireplace.
Multiple Glass Heights
Across the full Flare range, including large-format and custom builds, linear fireplaces span 30″ to 400″. Three glass heights are offered: 16″, 24″ and 30″ in the Front Facing, See Through and Room Definer lineups, with 16″ and 24″ available across the entire range.
Power Supply
Flare Fireplaces all ship with a power supply as part of your purchase.
